T-II型电缆头 600A 35 kV T-OPII Deadbreak Connector

Eaton（Cooper） 美标T-II型电缆头 600A 35 kV Class T-OPII Deadbreak Connector

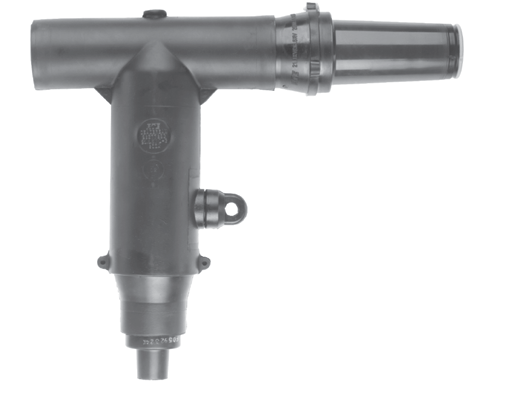

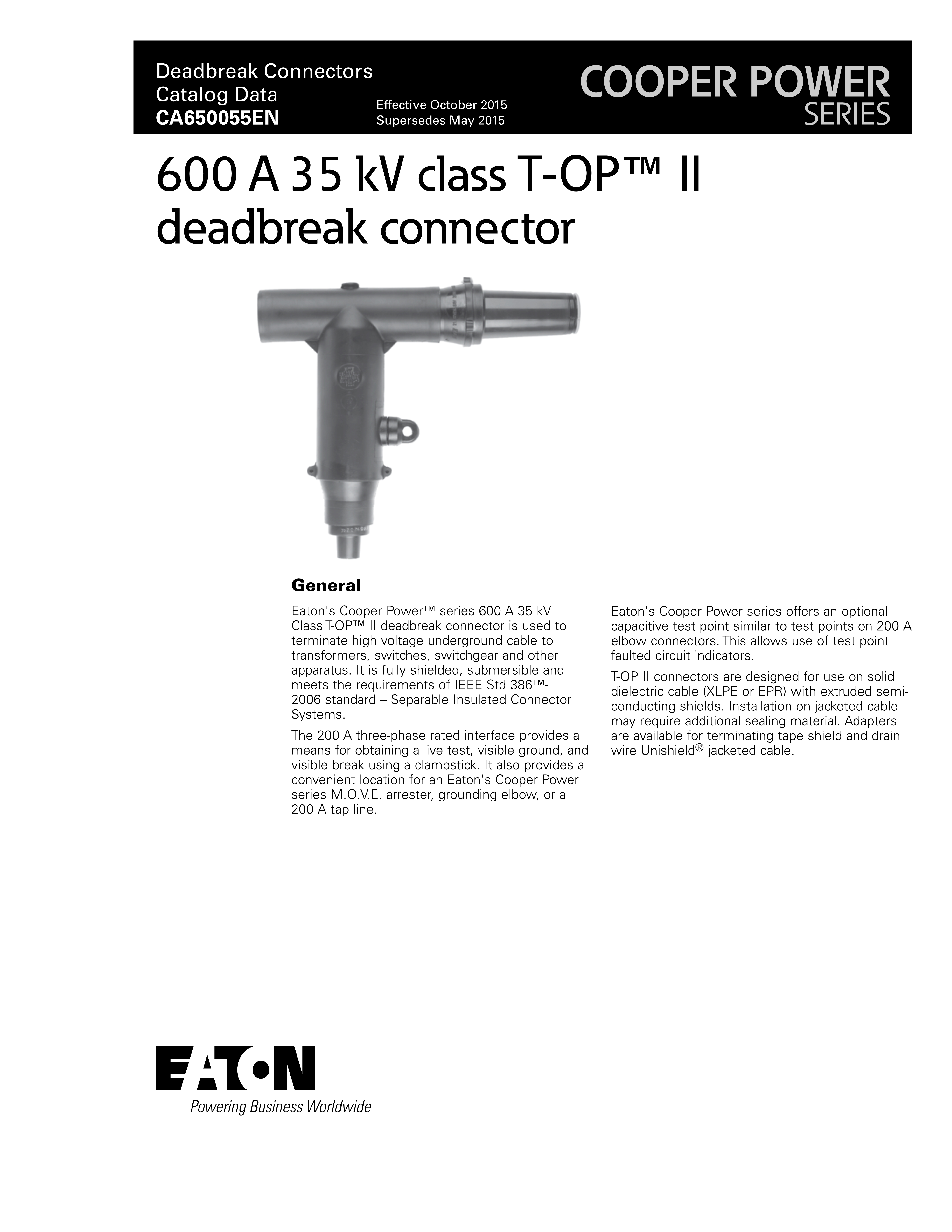

Eaton's Cooper Power™ series 600 A 35 kV Class T-OP™ II deadbreak connector is used to terminate high voltage underground cable to transformers, switches, switchgear and other apparatus. It is fully shielded, submersible and meets the requirements of IEEE Std 386™- 2006 standard – Separable Insulated Connector Systems.

The 200 A three-phase rated interface provides a means for obtaining a live test, visible ground, and visible break using a clampstick. It also provides a convenient location for an Eaton's Cooper Power series M.O.V.E. arrester, grounding elbow, or a 200 A tap line.

Eaton's Cooper Power series offers an optional capacitive test point similar to test points on 200 A elbow connectors. This allows use of test point faulted circuit indicators.

T-OP II connectors are designed for use on solid dielectric cable (XLPE or EPR) with extruded semiconducting shields. Installation on jacketed cable may require additional sealing material. Adapters are available for terminating tape shield and drain wire Unishield® jacketed cable.
