T型电缆头 600A 25 kV Bol-T Deadbreak Connector

Eaton（Cooper） 美标T型电缆头 600A 15&25 kV Class Bol-T Deadbreak Connector

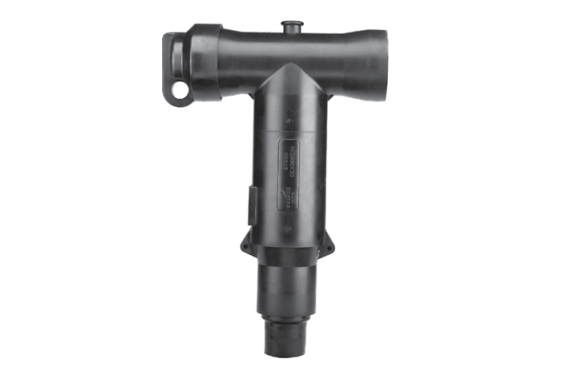

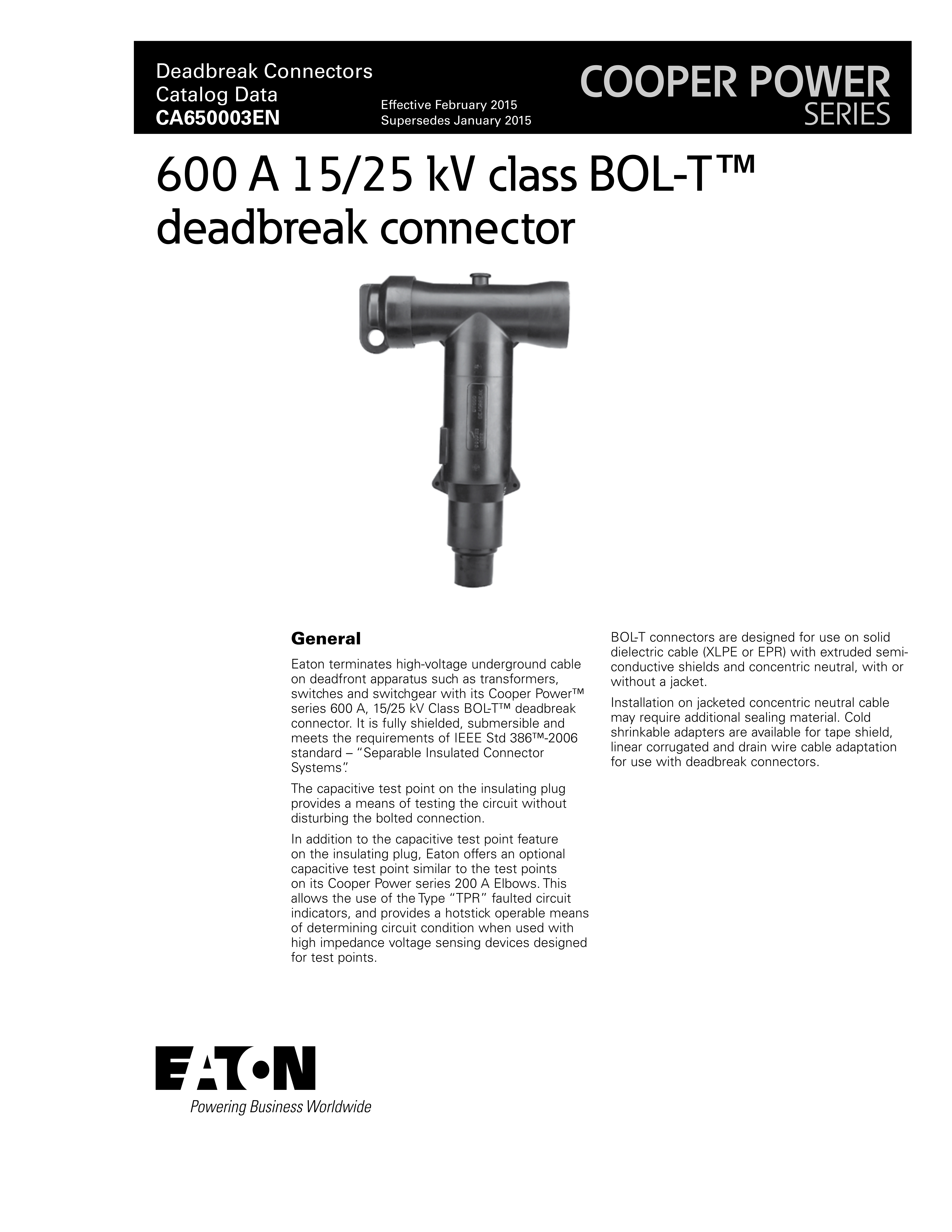

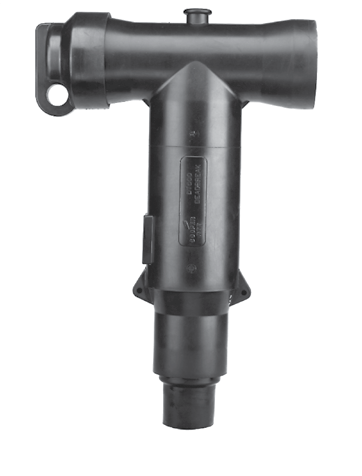

Eaton terminates high-voltage underground cable on deadfront apparatus such as transformers, switches and switchgear with its Cooper Power™ series 600 A, 15/25 kV Class BOL-T™ deadbreak connector. It is fully shielded, submersible and meets the requirements of IEEE Std 386™-2006 standard – “Separable Insulated Connector Systems”.

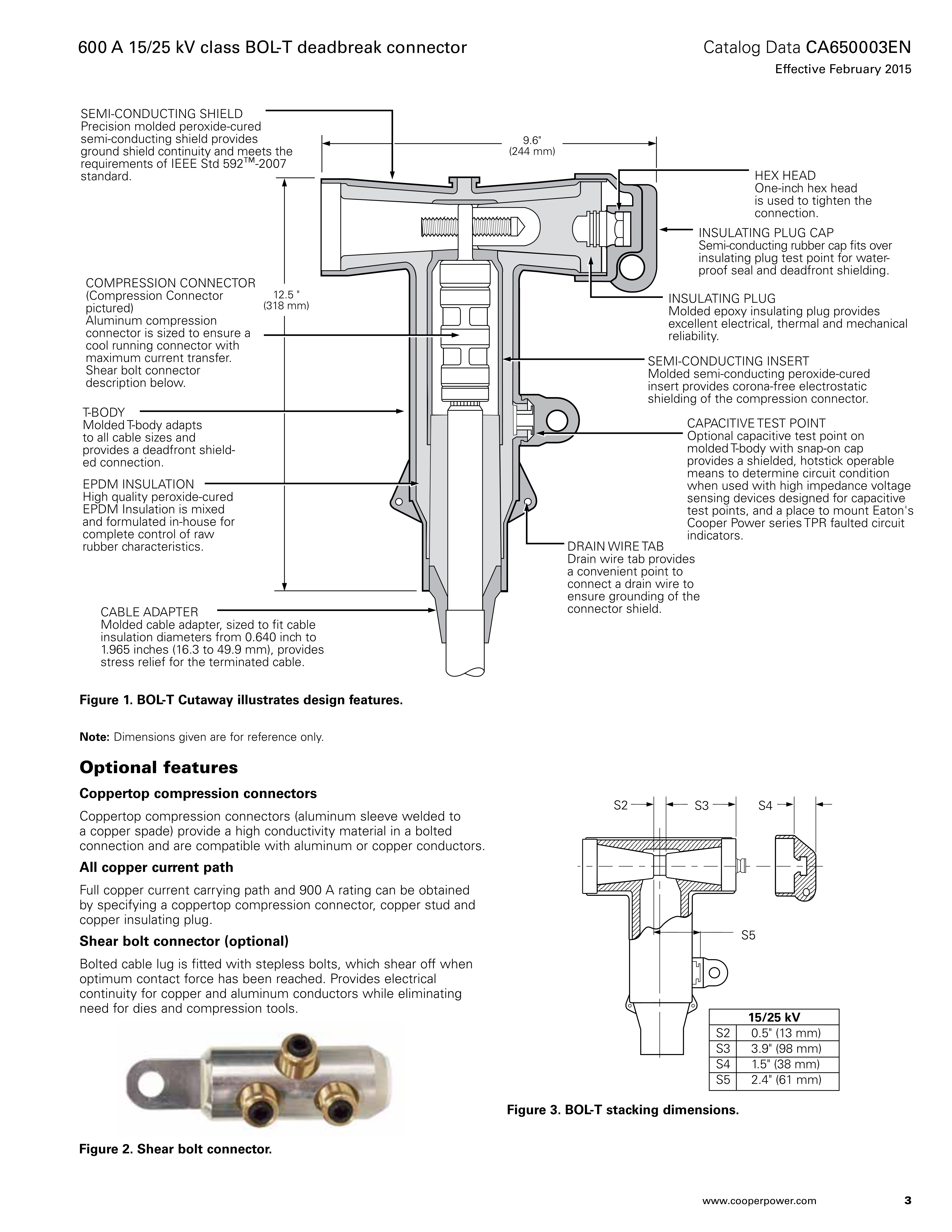

The capacitive test point on the insulating plug provides a means of testing the circuit without disturbing the bolted connection.

In addition to the capacitive test point feature on the insulating plug, Eaton offers an optional capacitive test point similar to the test points on its Cooper Power series 200 A Elbows. This allows the use of the Type “TPR” faulted circuit indicators, and provides a hotstick operable means of determining circuit condition when used with high impedance voltage sensing devices designed for test points.

BOL-T connectors are designed for use on solid dielectric cable (XLPE or EPR) with extruded semiconductive shields and concentric neutral, with or without a jacket.

Installation on jacketed concentric neutral cable may require additional sealing material. Cold shrinkable adapters are available for tape shield, linear corrugated and drain wire cable adaptation for use with deadbreak connectors.
