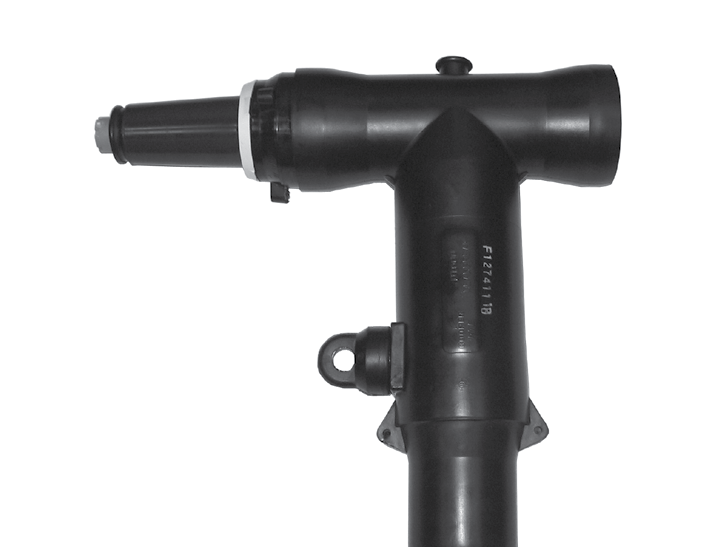

T-II型电缆头 600A 25 kV T-OPII Deadbreak Connector

Eaton（Cooper） 美标T-II型电缆头 600A 25 kV Class T-OPII Deadbreak Connector

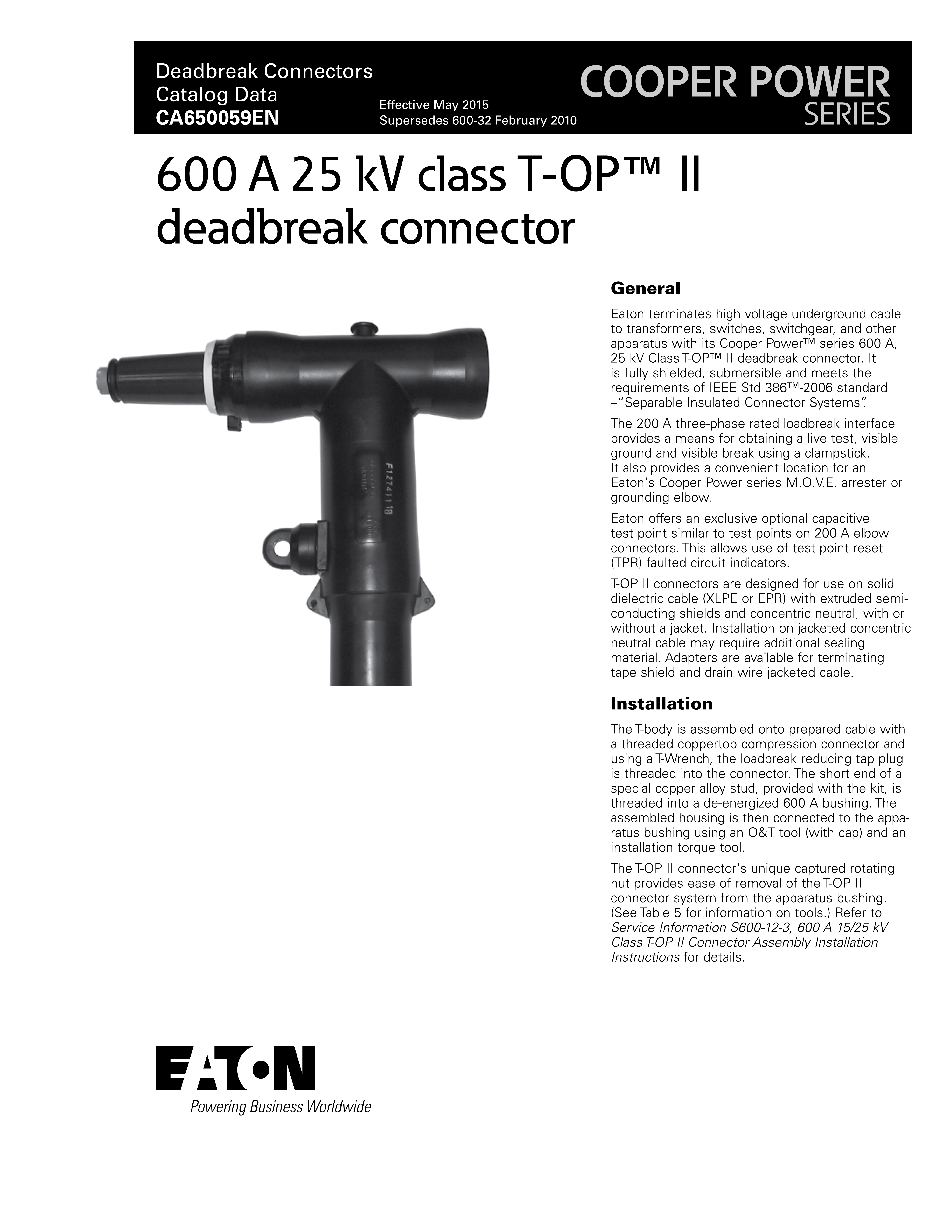

Eaton terminates high voltage underground cable to transformers, switches, switchgear, and other apparatus with its Cooper Power™ series 600 A, 25 kV Class T-OP™ II deadbreak connector. It is fully shielded, submersible and meets the requirements of IEEE Std 386™-2006 standard – “Separable Insulated Connector Systems”.

The 200 A three-phase rated loadbreak interface provides a means for obtaining a live test, visible ground and visible break using a clampstick. It also provides a convenient location for an Eaton's Cooper Power series M.O.V.E. arrester or grounding elbow.

Eaton offers an exclusive optional capacitive test point similar to test points on 200 A elbow connectors. This allows use of test point reset (TPR) faulted circuit indicators.

T-OP II connectors are designed for use on solid dielectric cable (XLPE or EPR) with extruded semiconducting shields and concentric neutral, with or without a jacket. Installation on jacketed concentric neutral cable may require additional sealing material. Adapters are available for terminating tape shield and drain wire jacketed cable.
