25KV 600A T型电缆接头

产品详情 在线询价
25KV 600A T型电缆接头用在美式箱变和环网开关柜中，形成全密封、全绝缘、可触摸的电缆连接系统，安全可靠。

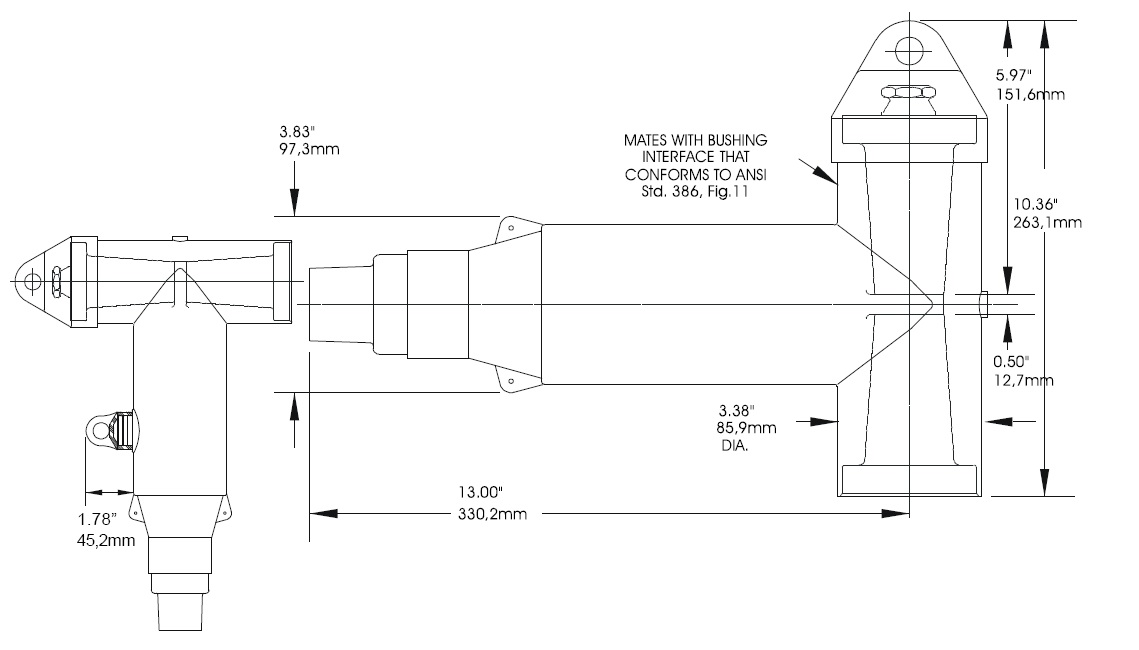

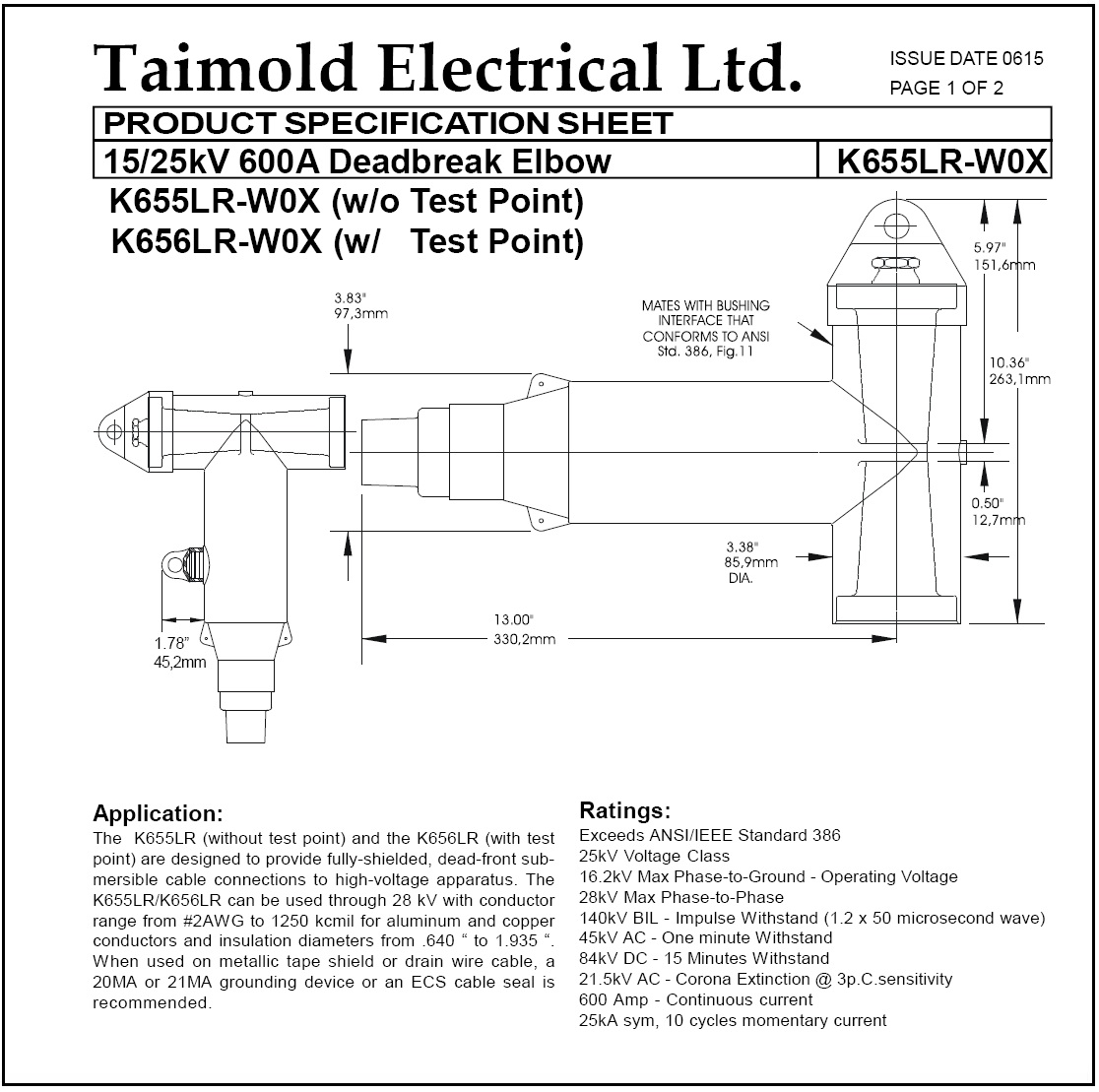

The K655LR (without test point) and the K656LR (with test point) are designed to provide fully-shielded, dead-front submersible cable connections to high-voltage apparatus. The K655LR/K656LR can be used through 28 kV with conductor range from #2AWG to 1250 kcmil for aluminum and copper conductors and insulation diameters from .640 “ to 1.935 “.
When used on metallic tape shield or drain wire cable, a 20MA or 21MA grounding device or an ECS cable seal is recommended.
