25KV 200A 肘型电缆插拔头

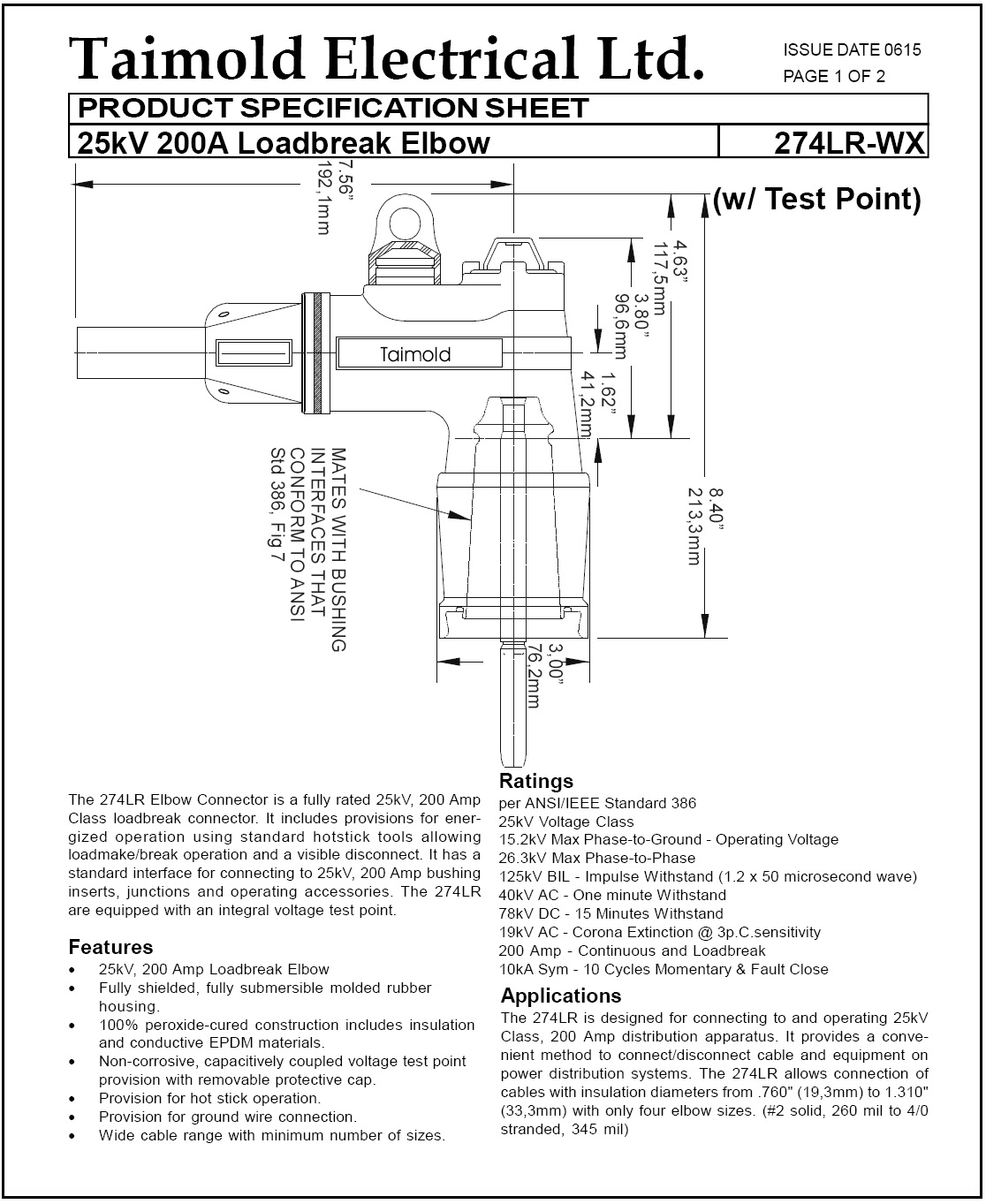

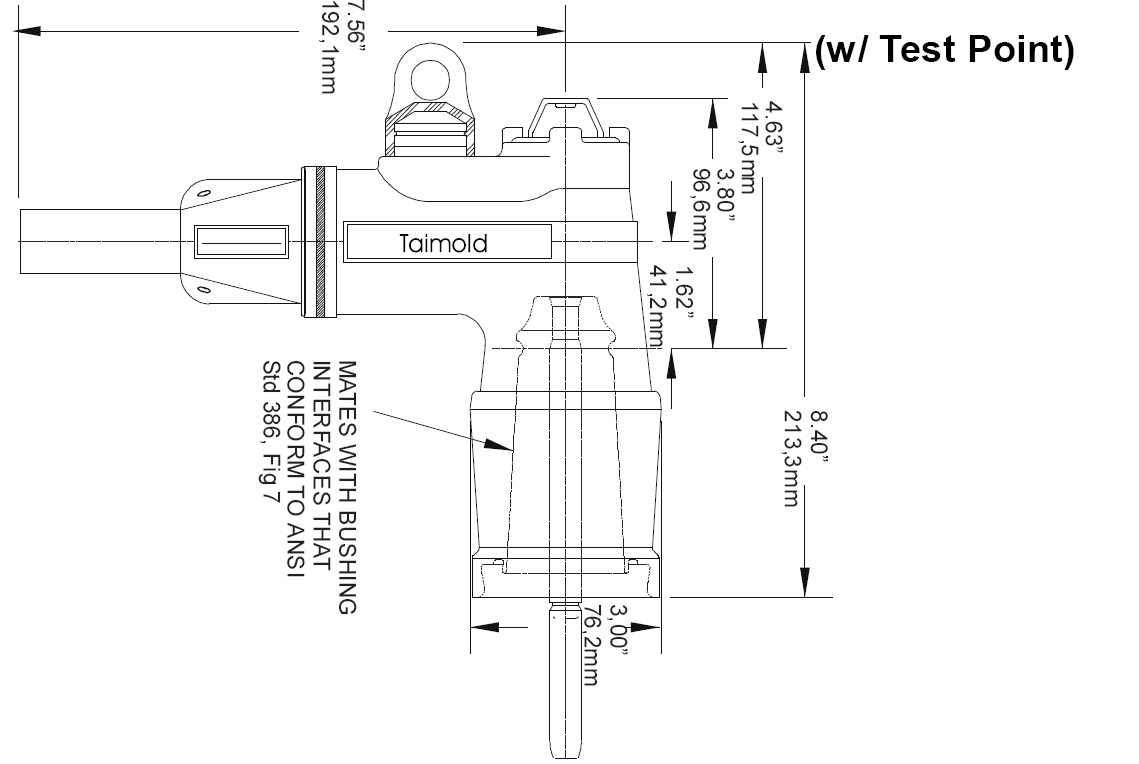

The 274LR Elbow Connector is a fully rated 25kV, 200 Amp Class loadbreak connector. It includes provisions for energized operation using standard hotstick tools allowing loadmake/break operation and a visible disconnect. It has a standard interface for connecting to 25kV, 200 Amp bushing inserts, junctions and operating accessories. The 274LR are equipped with an integral voltage test point.
