绝缘保护帽 200A 25kV Class Insulated Protective Cap

Eaton（Cooper）绝缘保护帽 200A 25kV Class Insulated Protective Cap

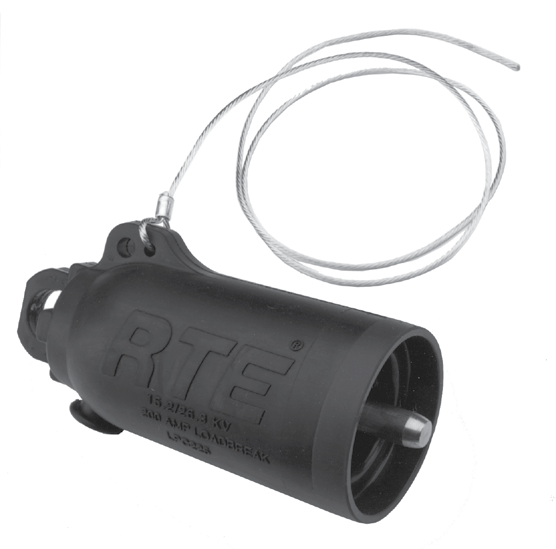

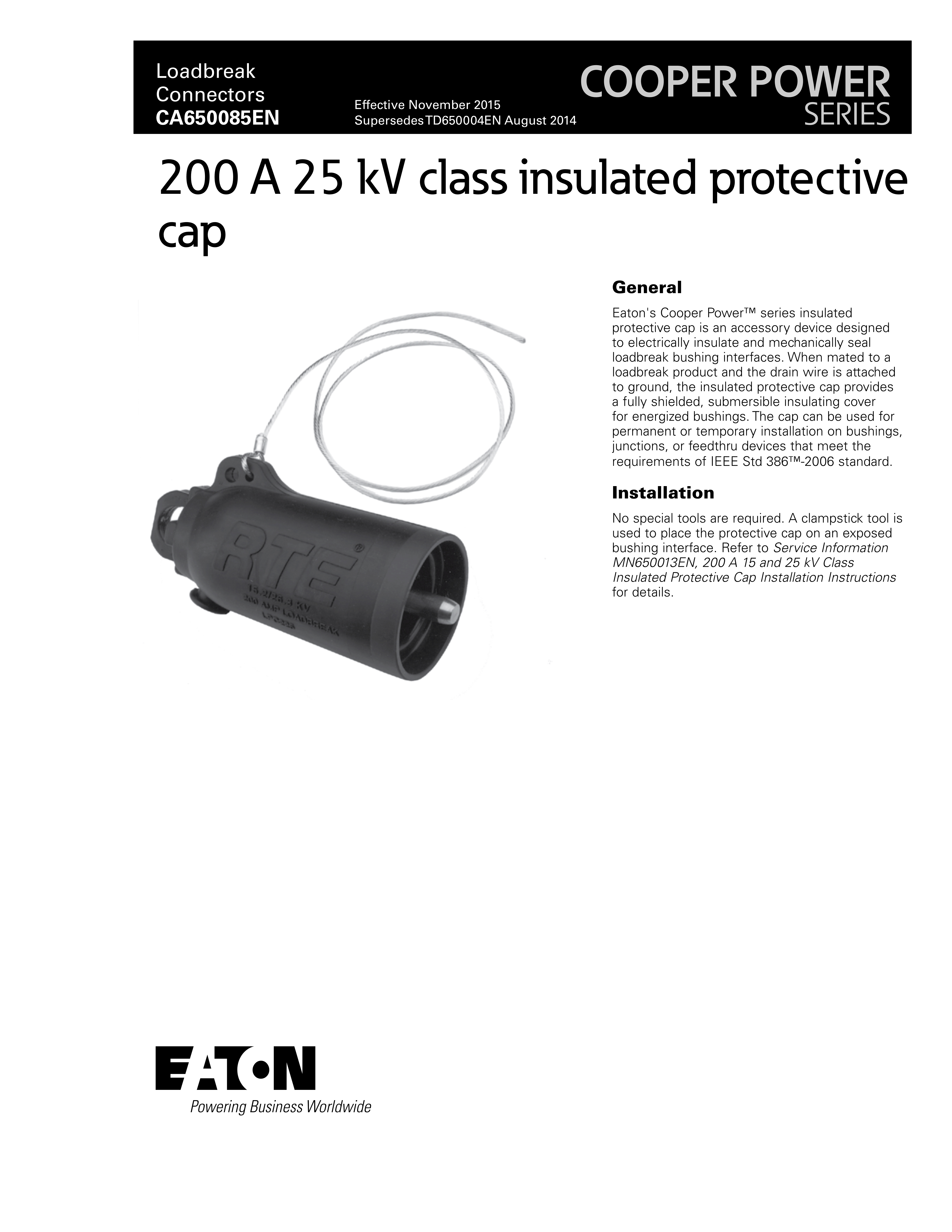

Eaton's Cooper Power™ series insulated protective cap is an accessory device designed to electrically insulate and mechanically seal loadbreak bushing interfaces. When mated to a loadbreak product and the drain wire is attached to ground, the insulated protective cap provides a fully shielded, submersible insulating cover for energized bushings. The cap can be used for permanent or temporary installation on bushings, junctions, or feedthru devices that meet the requirements of IEEE Std 386™-2006 standard.

No special tools are required. A clampstick tool is used to place the protective cap on an exposed bushing interface. Refer to Service Information MN650013EN, 200 A 15 and 25 kV Class Insulated Protective Cap Installation Instructions for details.
