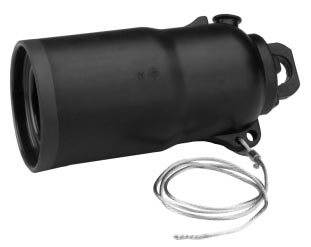

绝缘保护帽 600A 15&25 kV Insulated Protective Cap

Eaton（Cooper）绝缘保护帽 600A 15&25 kV Insulated Protective Cap

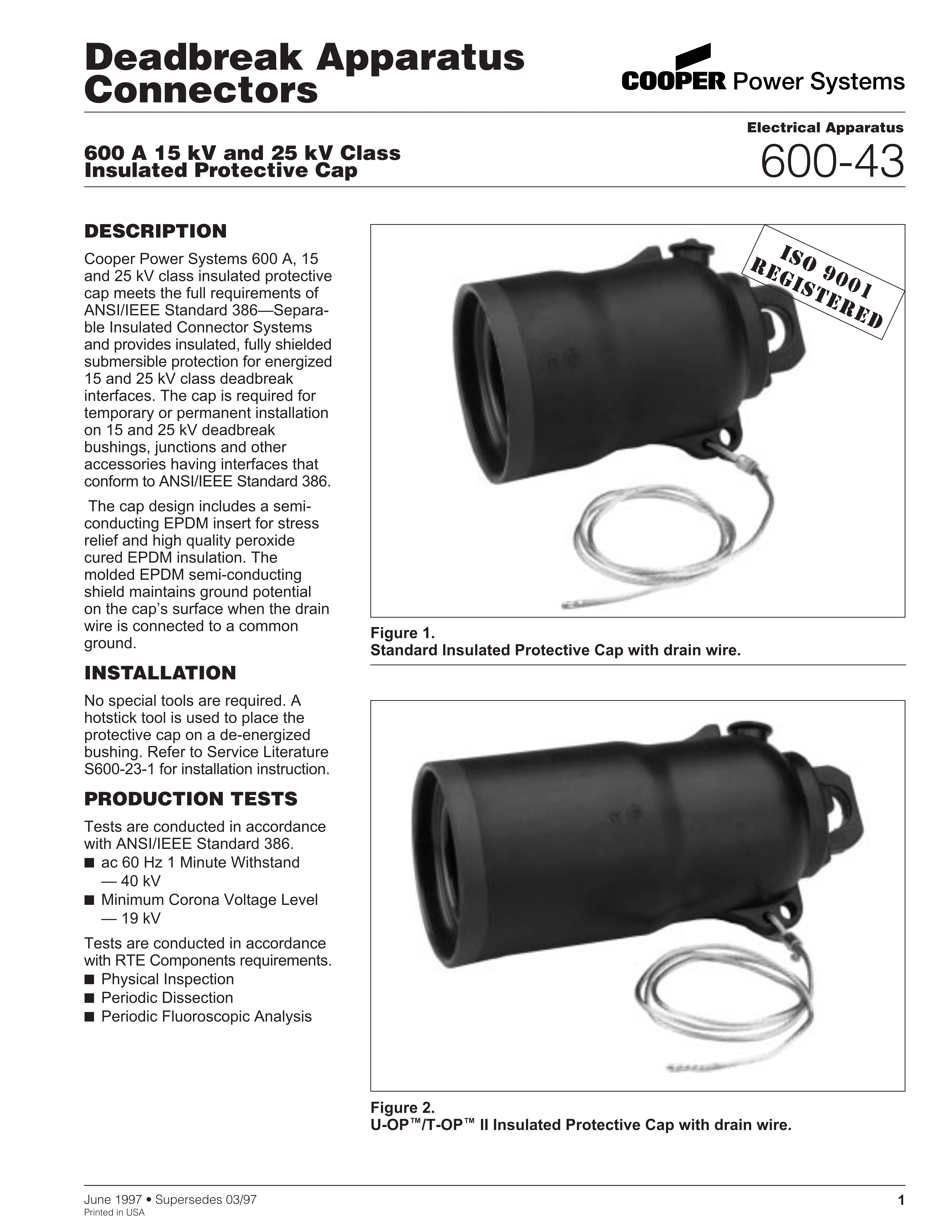

Cooper Power Systems 600 A, 15 and 25 kV class insulated protective cap meets the full requirements of ANSI/IEEE Standard 386—Separable Insulated Connector Systems and provides insulated, fully shielded submersible protection for energized 15 and 25 kV class deadbreak interfaces. The cap is required for temporary or permanent installation on 15 and 25 kV deadbreak bushings, junctions and other accessories having interfaces that conform to ANSI/IEEE Standard 386.

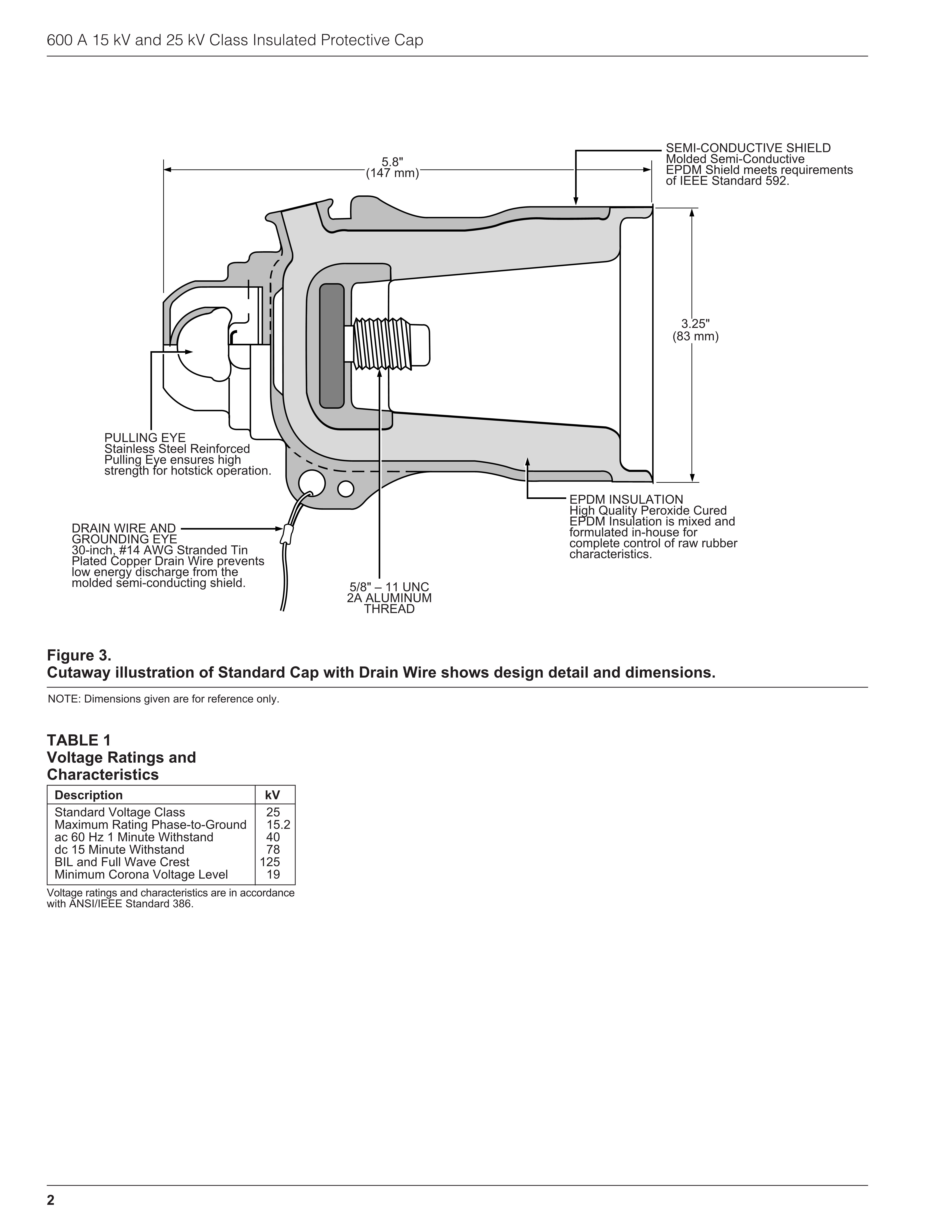

The cap design includes a semiconducting EPDM insert for stress relief and high quality peroxide cured EPDM insulation. The molded EPDM semi-conducting shield maintains ground potential on the cap’s surface when the drain wire is connected to a common ground.

No special tools are required. A hotstick tool is used to place the protective cap on a de-energized bushing. Refer to Service Literature S600-23-1 for installation instruction.
