欧式插拔头 630A 42kV Separable Connector

Eaton（Cooper） - 欧式电缆插拔头 630A 42kV Type C Interface Separable Connector

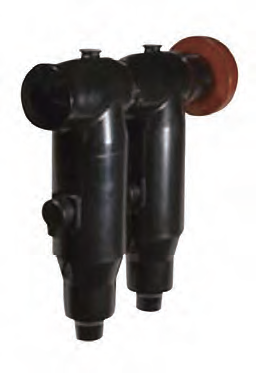

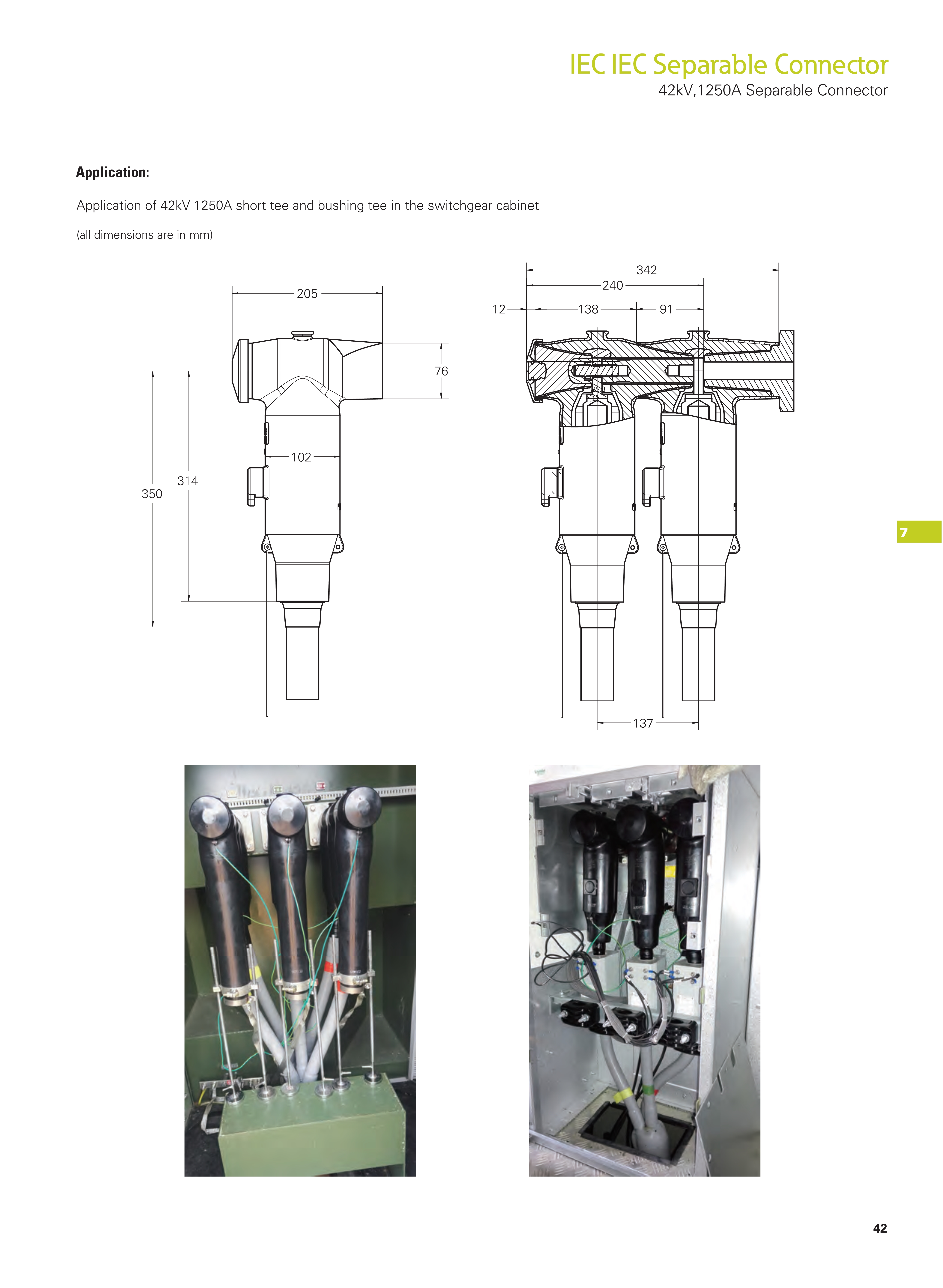

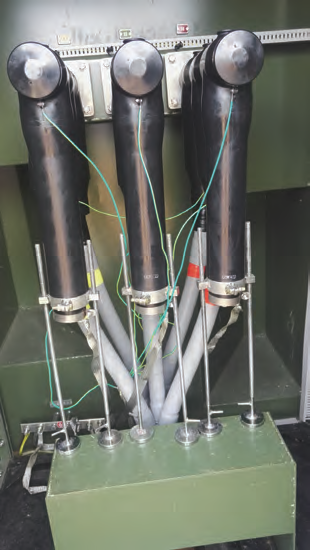

42kV,1250A Separable Connector.For connection of extruded polymeric cable to transformers, switchgear, sectionalizing cabinets with a premoulded 1250A separable connector.

For indoor and outdoor installations.

System voltage up to 42kV.

Continuous current 1250A.

Cable particulars:

Extruded polymeric cable (XLPE, EPR, etc).

Copper or aluminum conductors.

Conductor size: 26/35 kV cable 50 - 800mm².

Provides a fully screened and fully submersible separable connection when mated with the proper bushing or plug meet the requirements of EN50180/EN50181- DIN47636/HN52-S-61.

Built-in capacitive test point allows for an easy check of circuit status or installation of a fault indicator.

No minimum phase clearance requirements.

Mounting can be vertical, horizontal, or any angle in between.
