欧式插拔头 630A 36kV Separable Connector

Eaton（Cooper） - 欧式电缆插拔头 630A 36kV Type C Interface Separable Connector

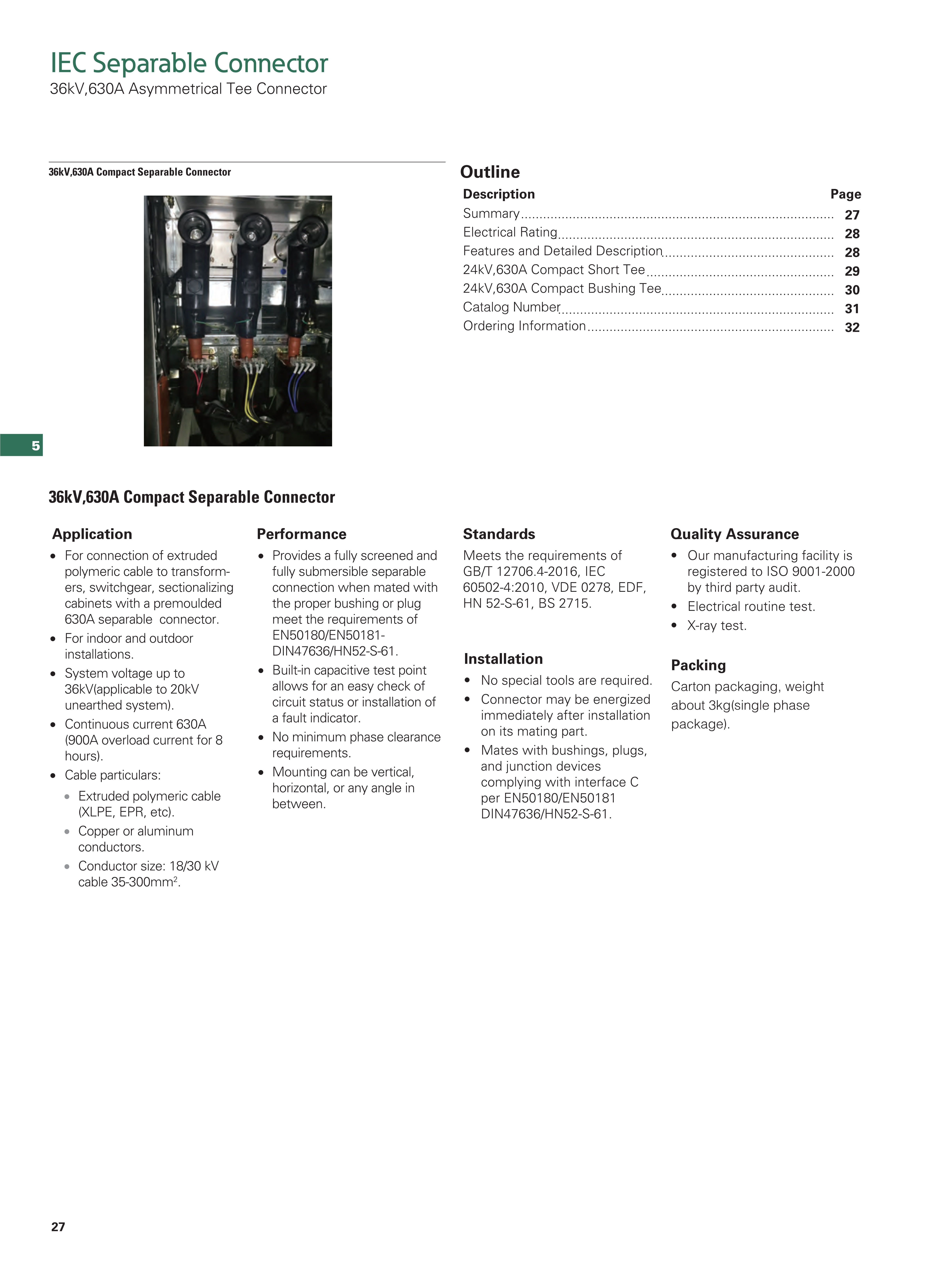

36kV,630A Compact Separable Connector

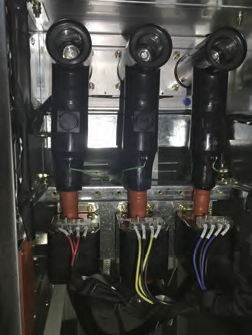

For connection of extruded polymeric cable to transformers, switchgear, sectionalizing cabinets with a premoulded 630A separable connector.

For indoor and outdoor installations.

System voltage up to 36kV (applicable to 20kV unearthed system).

Continuous current 630A (900A overload current for 8 hours).

Cable particulars:

Extruded polymeric cable (XLPE, EPR, etc).

Copper or aluminum conductors.

Conductor size: 18/30 kV cable 35-300mm².

Provides a fully screened and fully submersible separable connection when mated with the proper bushing or plug meet the requirements of EN50180/EN50181- DIN47636/HN52-S-61.

Built-in capacitive test point allows for an easy check of circuit status or installation of a fault indicator.

No minimum phase clearance requirements.

Mounting can be vertical, horizontal, or any angle in between.
