　　10kV Power Supply Vehicle Cable Quick-Plug Solution

　　The 10 kV power supply vehicle is a mobile, temporary power generation unit designed for field use. It serves as an economical, efficient, and convenient solution for applications requiring uninterrupted power supply—such as temporary maintenance of distribution equipment without service interruption—as well as emergency repair and construction work that demands on-site temporary power.

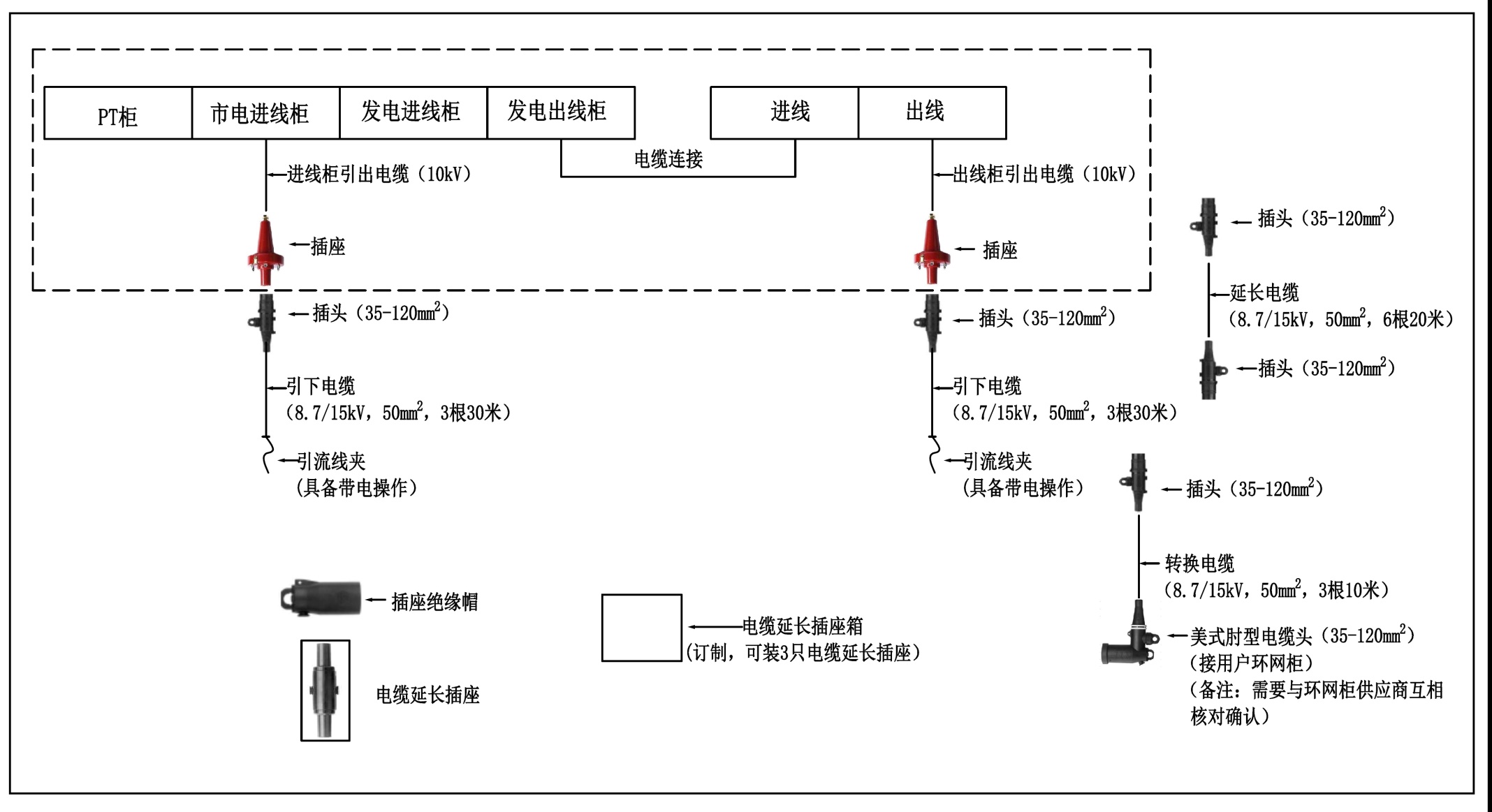

　　To enable rapid, convenient, and reliable connection of the power supply vehicle to both the power-receiving end (load side) and the power-supplying end (source side), the cable connection system must employ couplers—i.e., plugs and sockets—with a fast, tool-free “plug-and-unplug” functionality. The solution outlined below effectively addresses this requirement for rapid cable interconnection in 10 kV power supply vehicles.

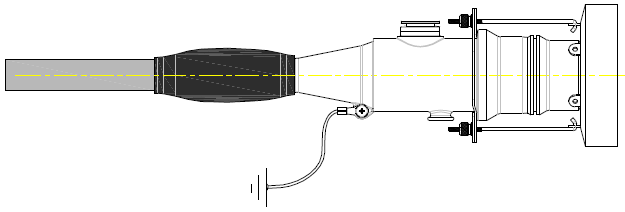

　　1， Socket

　　This socket features a dual-end design: one end connects to the quick-plug connector, achieving fully sealed and fully insulated electrical performance; the other end connects to the cable extended from the power supply vehicle’s switchgear, using air insulation. This configuration offers exceptional flexibility in application and eliminates dependence on high-performance insulating media (e.g., SF₆ or oil).

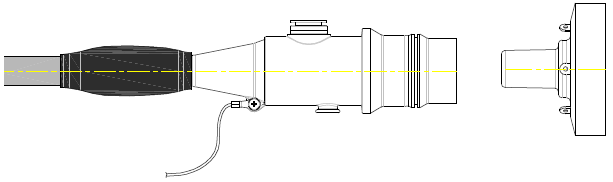

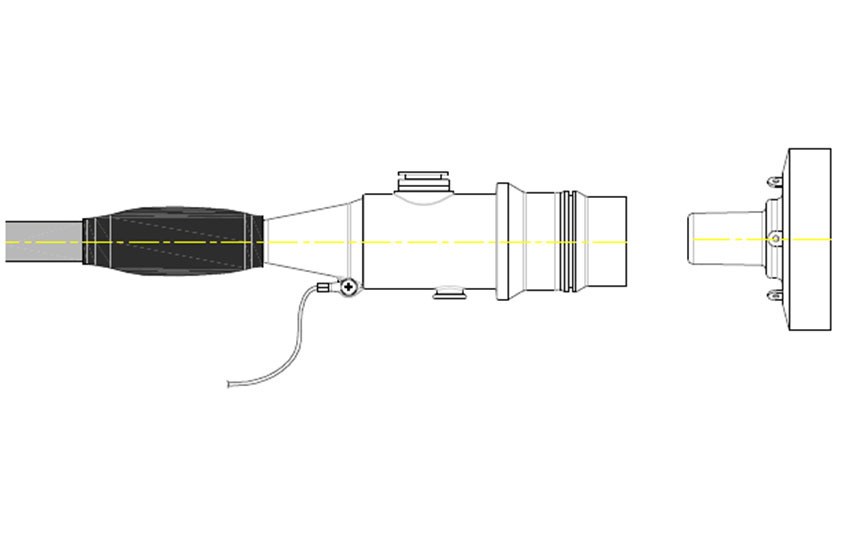

　　2,Plug

　　This fully sealed, fully insulated, and touch-safe design enables reliable operation in complex and harsh outdoor environments. Its straight-through (inline) structure simplifies cable connection to the power supply vehicle, ensuring immediate, plug-and-play usability.

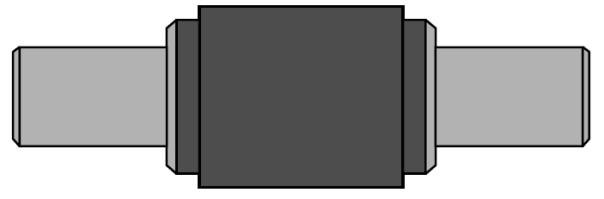

　　3， Cable Connection Socket

　　This product features a fully sealed, fully insulated, and touch-safe design with a straight-through (inline) configuration—enabling direct end-to-end mating of cable plugs from both sides. It is especially suitable for extending power supply cables when a single cable is insufficient in length.
