双电压开关150A Dual Voltage Switch

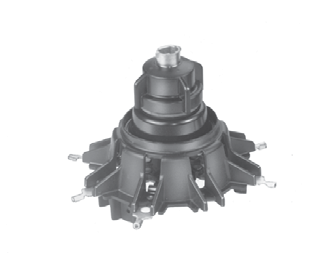

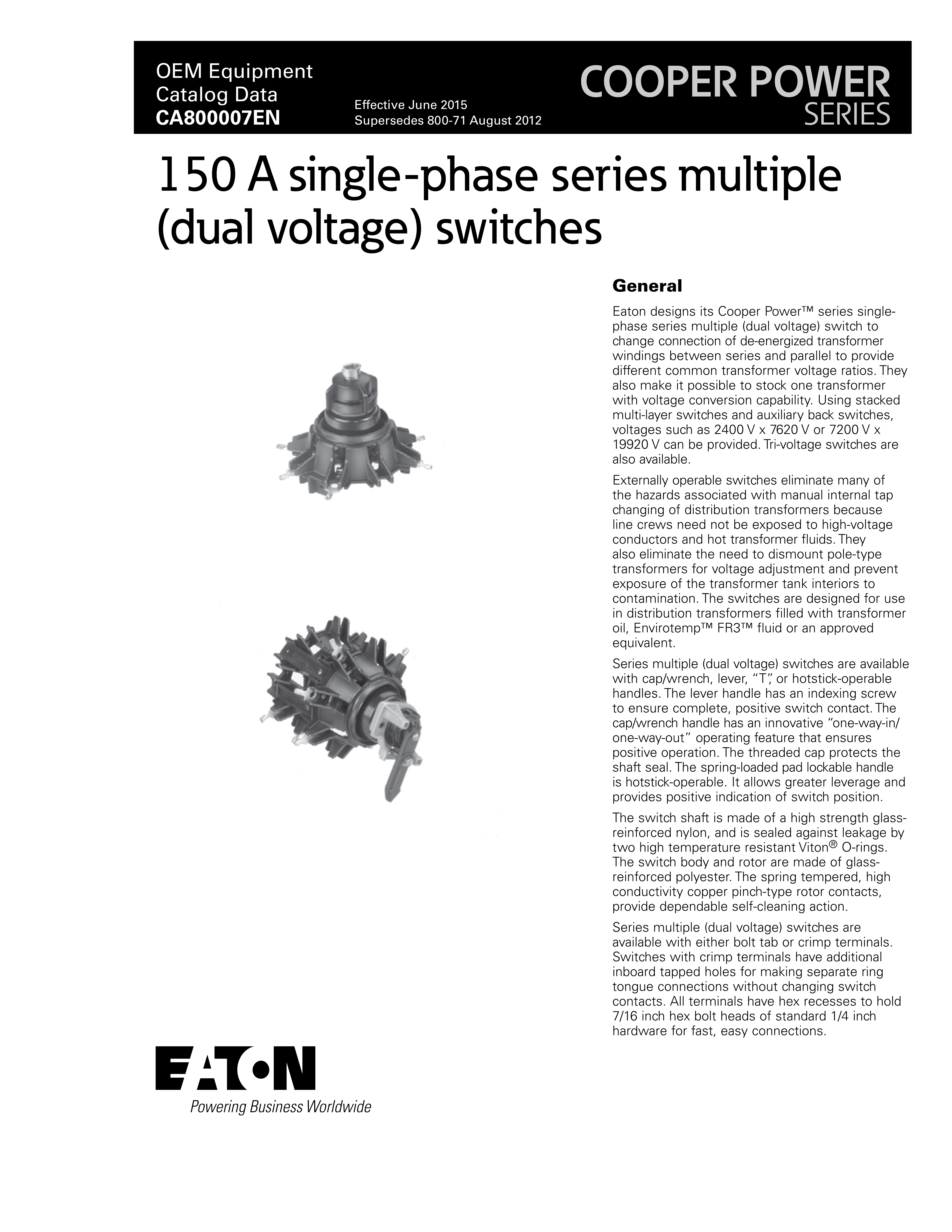

Eaton（Cooper）双电压开关 150A Externally Operated Series Multiple (Dual Voltage) Switch

Eaton designs its Cooper Power™ series single-phase series multiple (dual voltage) switch to change connection of de-energized transformer windings between series and parallel to provide different common transformer voltage ratios. They also make it possible to stock one transformer with voltage conversion capability. Using stacked multi-layer switches and auxiliary back switches, voltages such as 2400 V x 7620 V or 7200 V x 19920 V can be provided. Tri-voltage switches are also available.

Externally operable switches eliminate many of the hazards associated with manual internal tap changing of distribution transformers because line crews need not be exposed to high-voltage conductors and hot transformer fluids. They also eliminate the need to dismount pole-type transformers for voltage adjustment and prevent exposure of the transformer tank interiors to contamination. The switches are designed for use in distribution transformers filled with transformer oil, Envirotemp™ FR3™ fluid or an approved equivalent.

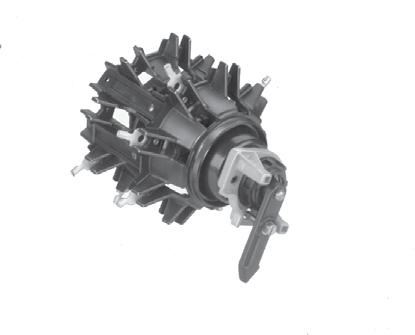

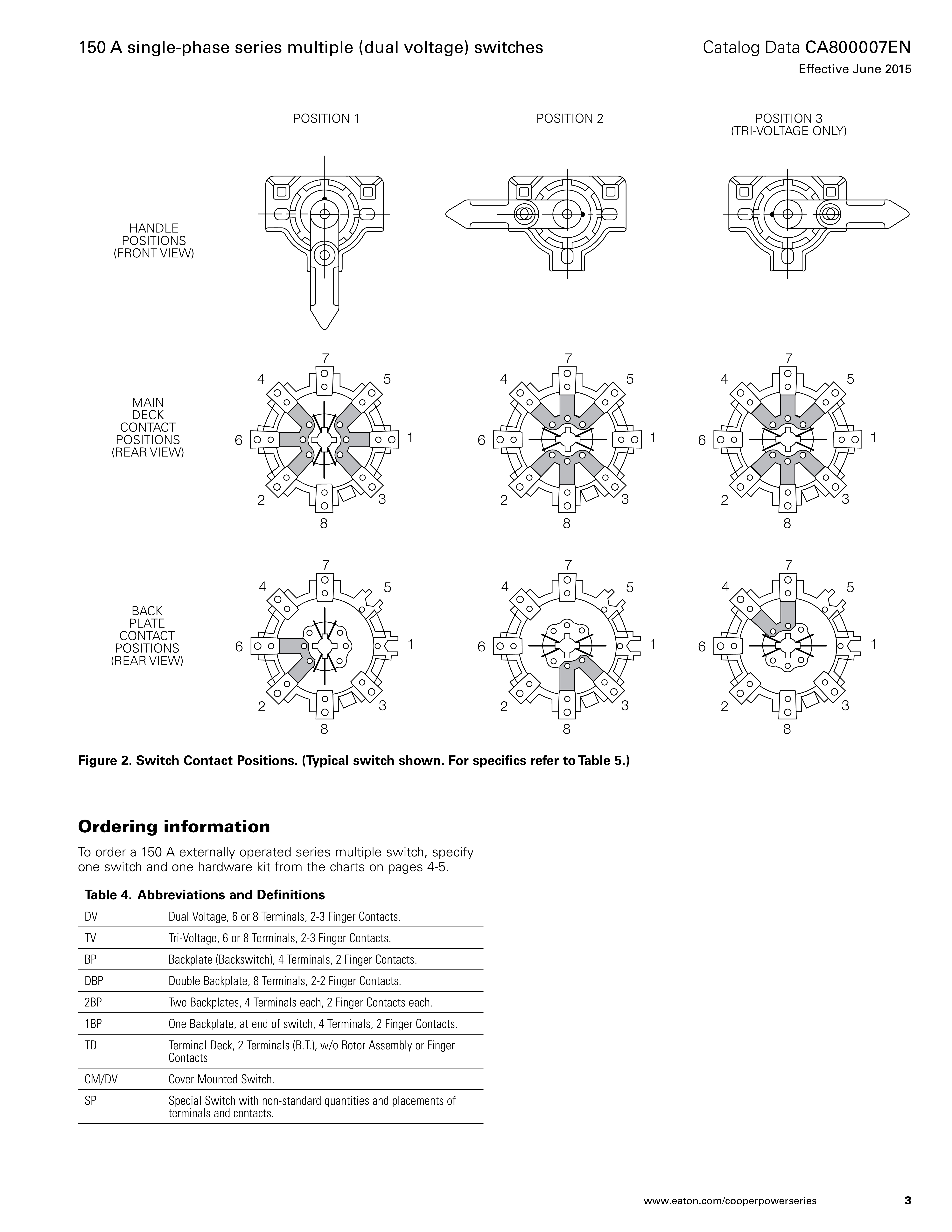

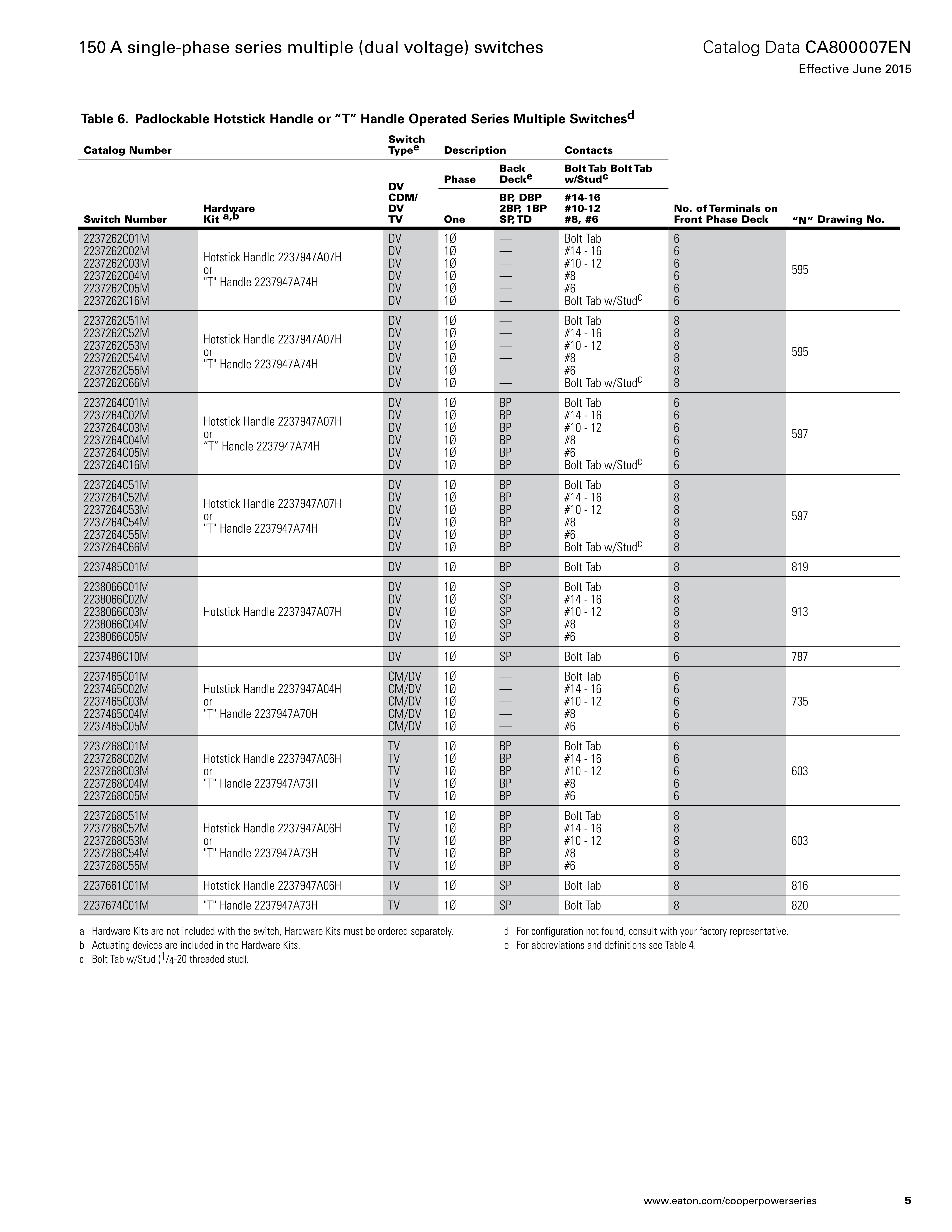

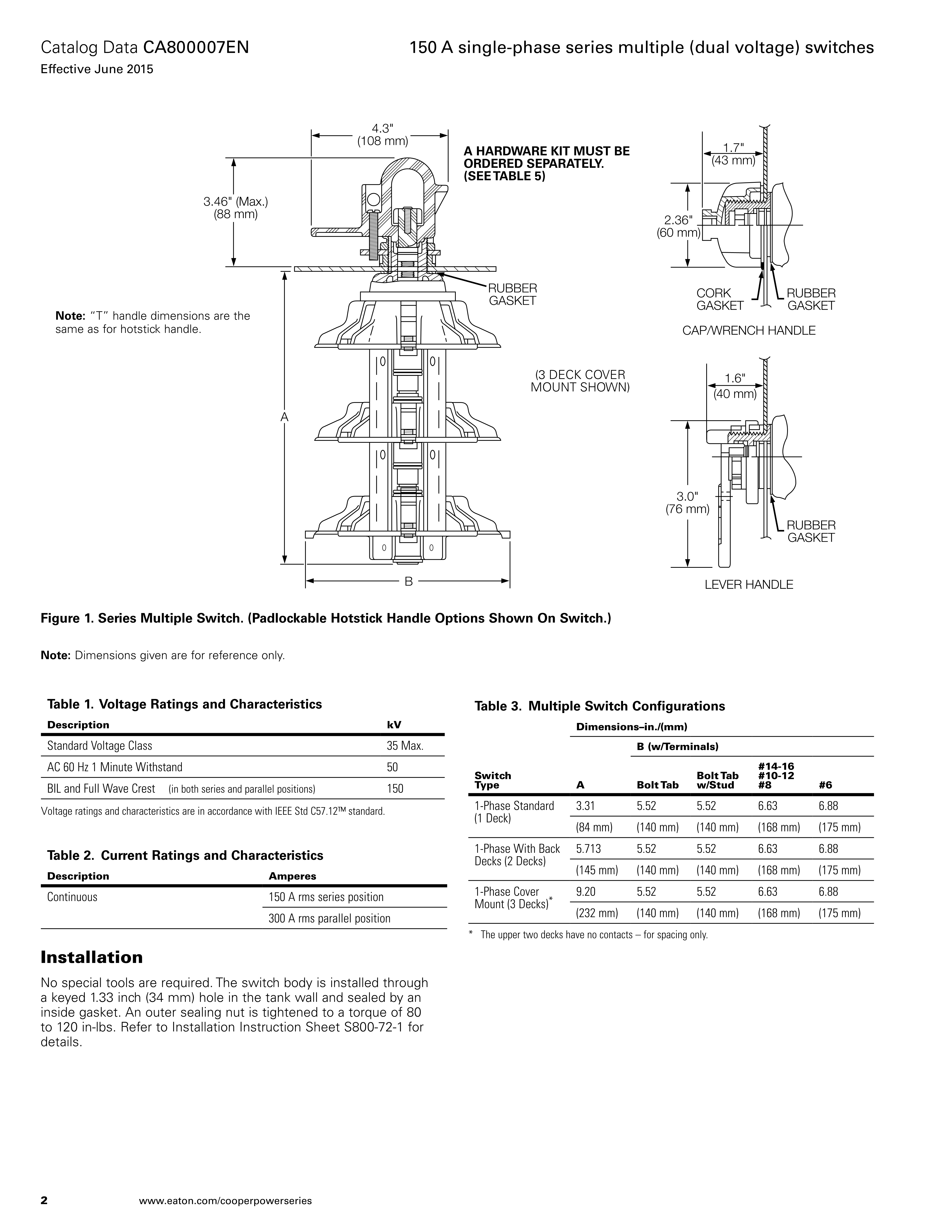

Series multiple (dual voltage) switches are available with cap/wrench, lever, “T”, or hotstick-operable handles. The lever handle has an indexing screw to ensure complete, positive switch contact. The cap/wrench handle has an innovative “one-way-in/ one-way-out” operating feature that ensures positive operation. The threaded cap protects the shaft seal. The spring-loaded pad lockable handle is hotstick-operable. It allows greater leverage and provides positive indication of switch position.

The switch shaft is made of a high strength glassreinforced nylon, and is sealed against leakage by two high temperature resistant Viton® O-rings. The switch body and rotor are made of glassreinforced polyester. The spring tempered, high conductivity copper pinch-type rotor contacts, provide dependable self-cleaning action.

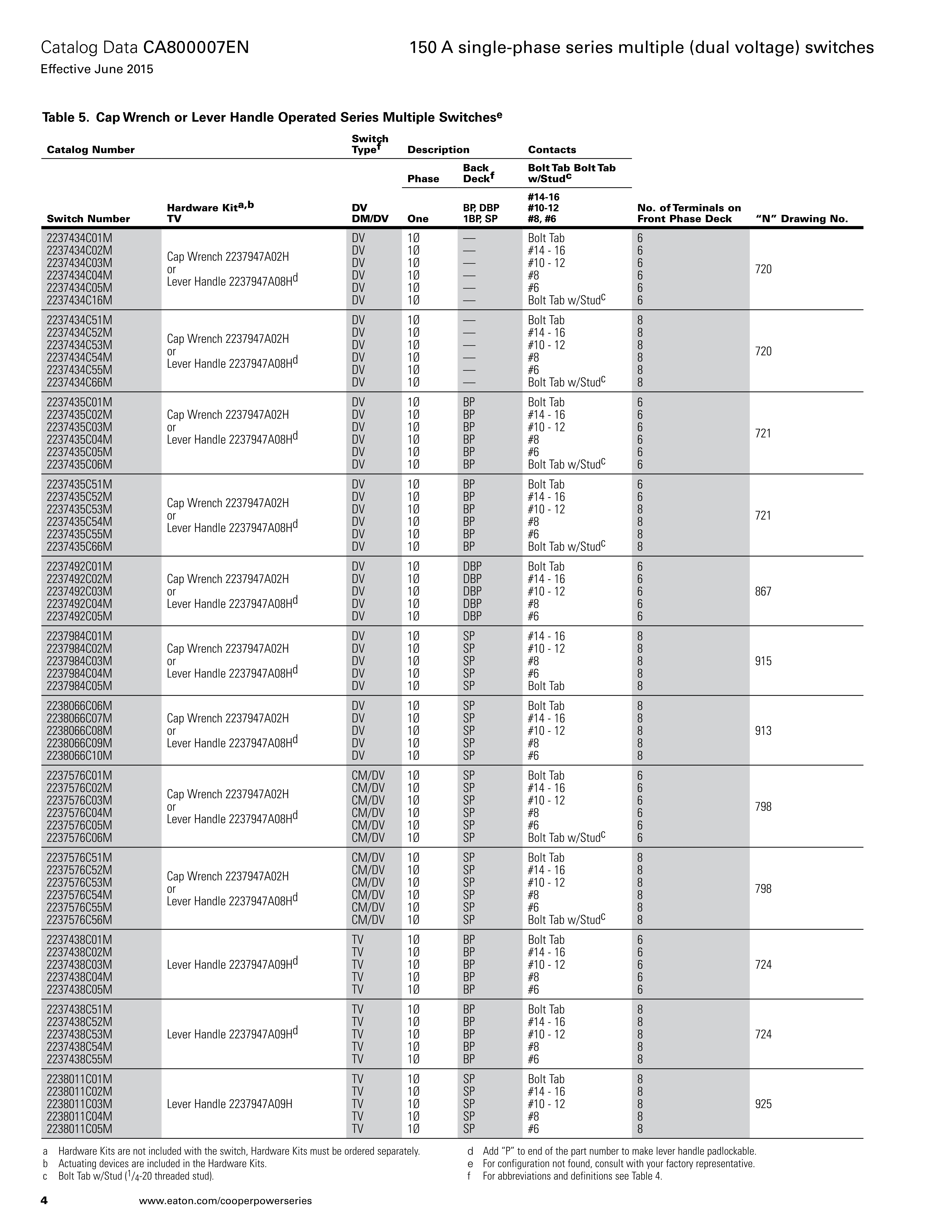

Series multiple (dual voltage) switches are available with either bolt tab or crimp terminals. Switches with crimp terminals have additional inboard tapped holes for making separate ring tongue connections without changing switch contacts. All terminals have hex recesses to hold 7/16 inch hex bolt heads of standard 1/4 inch hardware for fast, easy connections.
