绝缘保护帽 200A 35kV Insulated Protective Cap

Eaton（Cooper）绝缘保护帽 200A 35kV Class Insulated Protective Cap

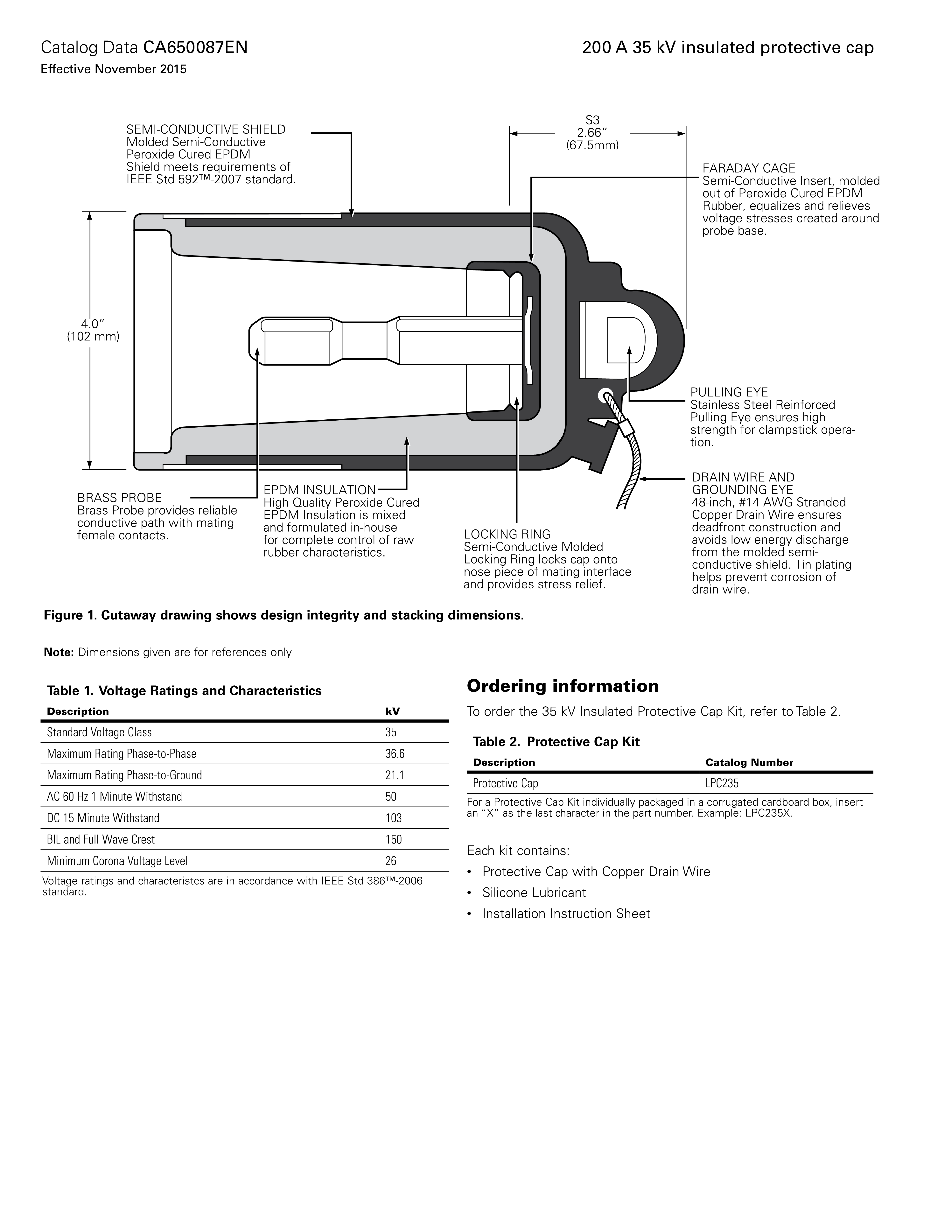

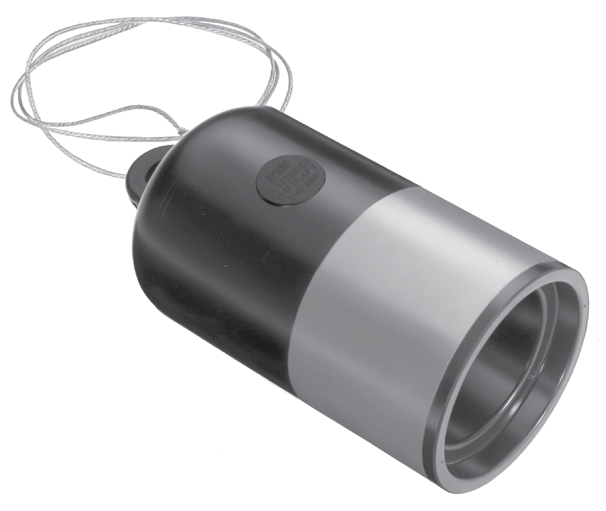

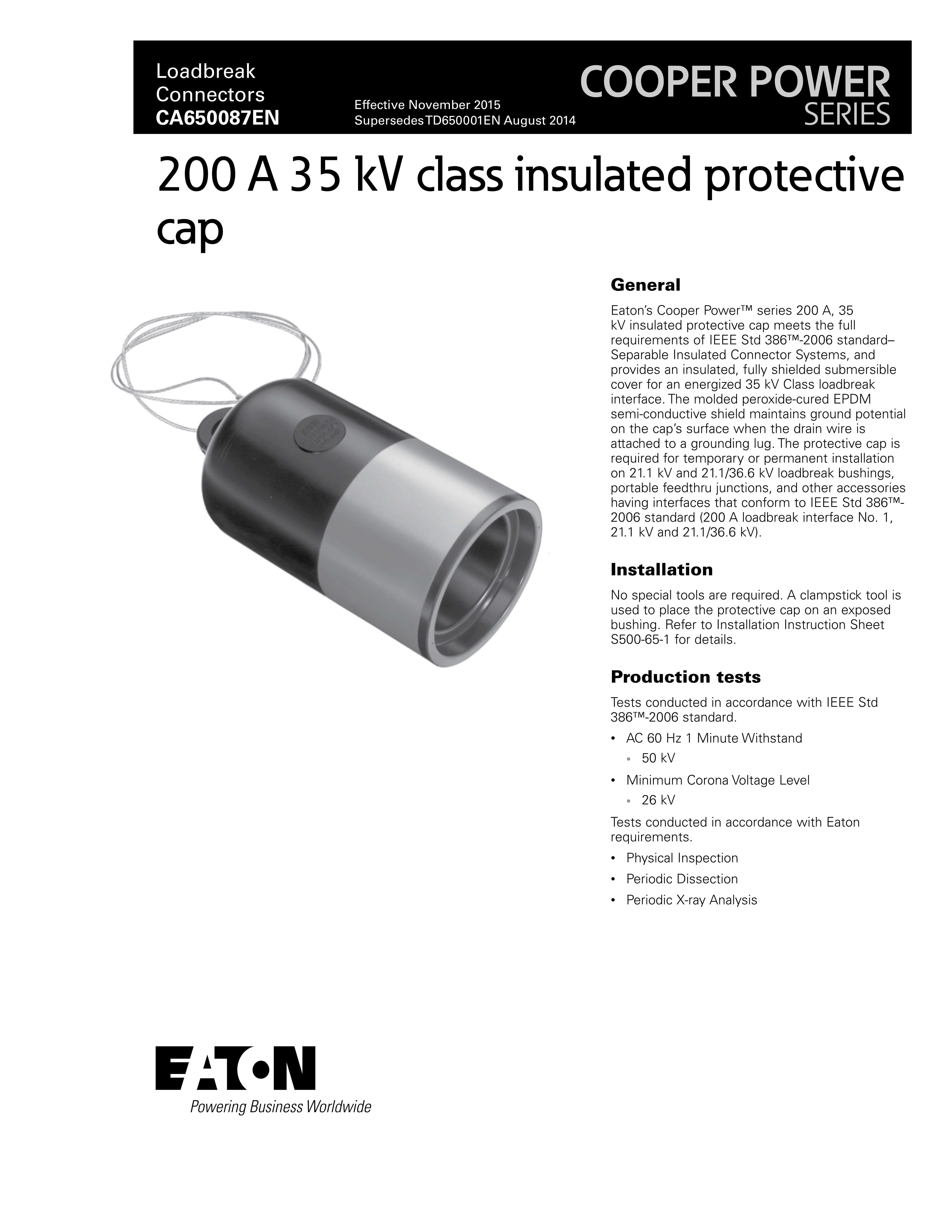

Eaton’s Cooper Power™ series 200 A, 35 kV insulated protective cap meets the full requirements of IEEE Std 386™-2006 standard– Separable Insulated Connector Systems, and provides an insulated, fully shielded submersible cover for an energized 35 kV Class loadbreak interface. The molded peroxide-cured EPDM semi-conductive shield maintains ground potential on the cap’s surface when the drain wire is attached to a grounding lug. The protective cap is required for temporary or permanent installation on 21.1 kV and 21.1/36.6 kV loadbreak bushings, portable feedthru junctions, and other accessories having interfaces that conform to IEEE Std 386™- 2006 standard (200 A loadbreak interface No. 1, 21.1 kV and 21.1/36.6 kV).

No special tools are required. A clampstick tool is used to place the protective cap on an exposed bushing. Refer to Installation Instruction Sheet S500-65-1 for details.
