单通套管 200A 15kV Bushing Insert

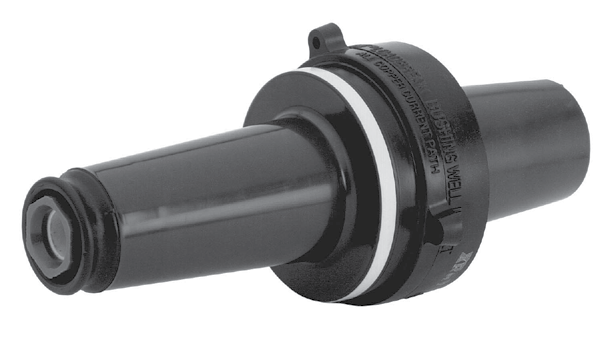

Eaton（Cooper）单通套管 200A 15kV Bushing Insert （LBI215X)

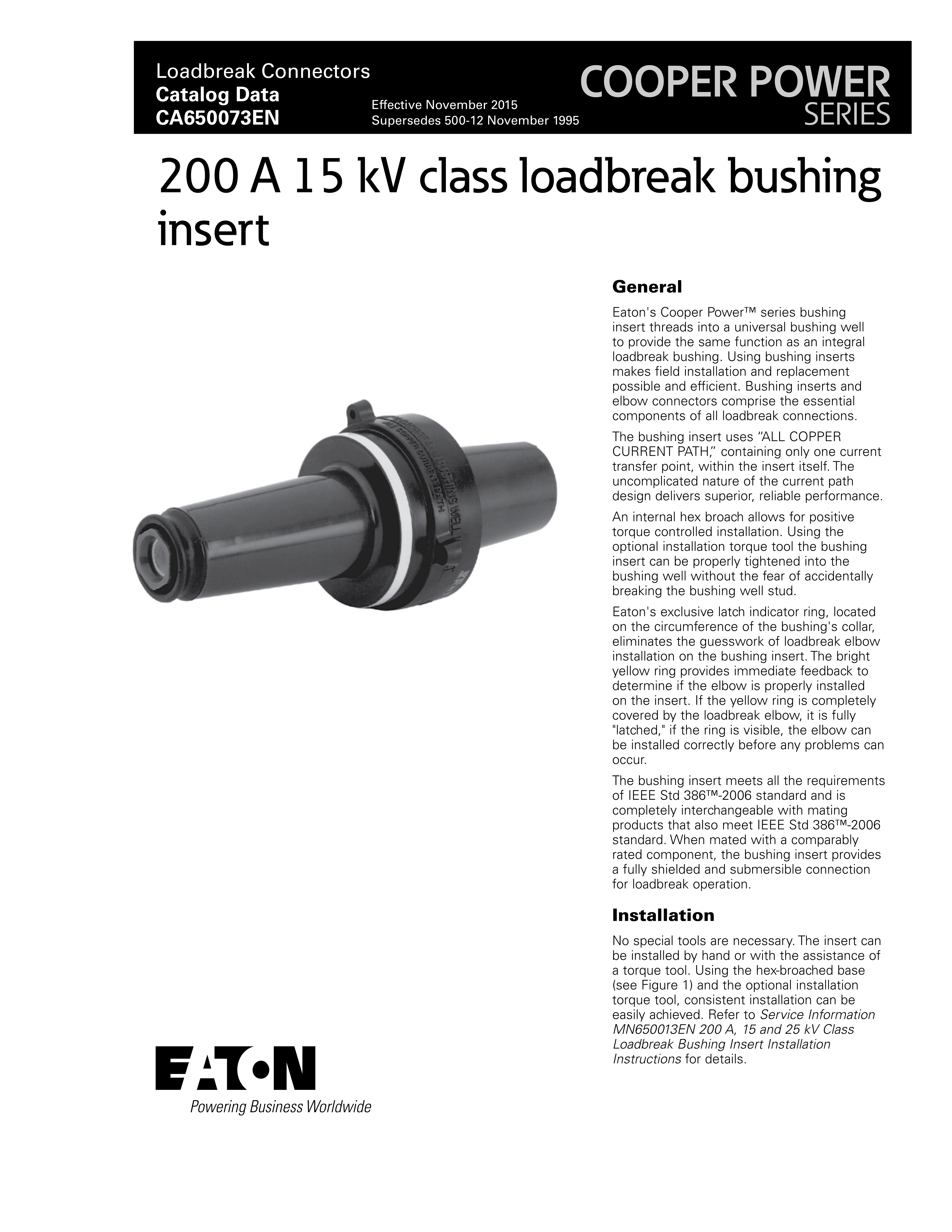

Eaton's Cooper Power™ series bushing insert threads into a universal bushing well to provide the same function as an integral loadbreak bushing. Using bushing inserts makes field installation and replacement possible and efficient. Bushing inserts and elbow connectors comprise the essential components of all loadbreak connections.

The bushing insert uses “ALL COPPER CURRENT PATH,” containing only one current transfer point, within the insert itself. The uncomplicated nature of the current path design delivers superior, reliable performance.

An internal hex broach allows for positive torque controlled installation. Using the optional installation torque tool the bushing insert can be properly tightened into the bushing well without the fear of accidentally breaking the bushing well stud.

Eaton's exclusive latch indicator ring, located on the circumference of the bushing's collar, eliminates the guesswork of loadbreak elbow installation on the bushing insert. The bright yellow ring provides immediate feedback to determine if the elbow is properly installed on the insert. If the yellow ring is completely covered by the loadbreak elbow, it is fully "latched," if the ring is visible, the elbow can be installed correctly before any problems can occur.

The bushing insert meets all the requirements of IEEE Std 386™-2006 standard and is completely interchangeable with mating products that also meet IEEE Std 386™-2006 standard. When mated with a comparably rated component, the bushing insert provides a fully shielded and submersible connection for loadbreak operation.

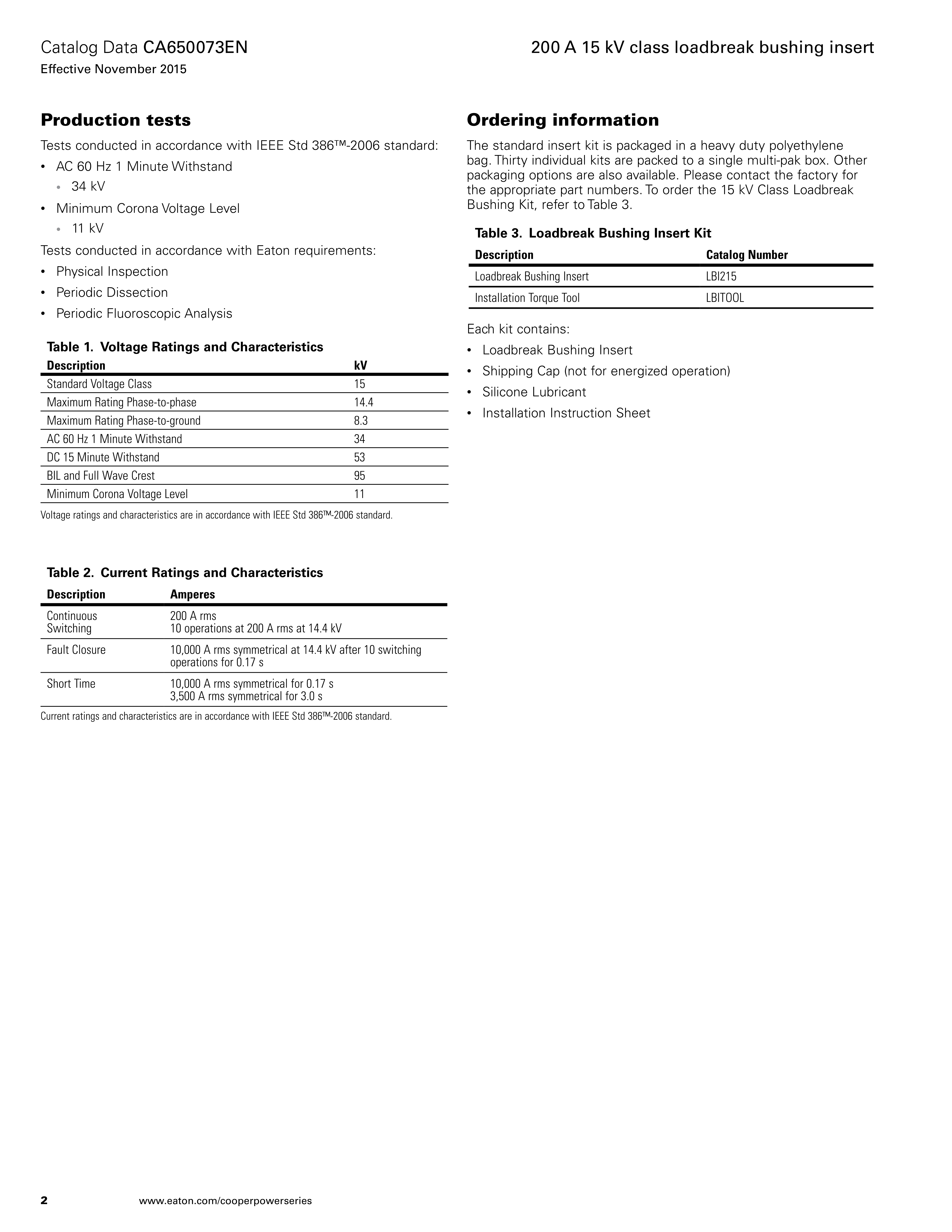

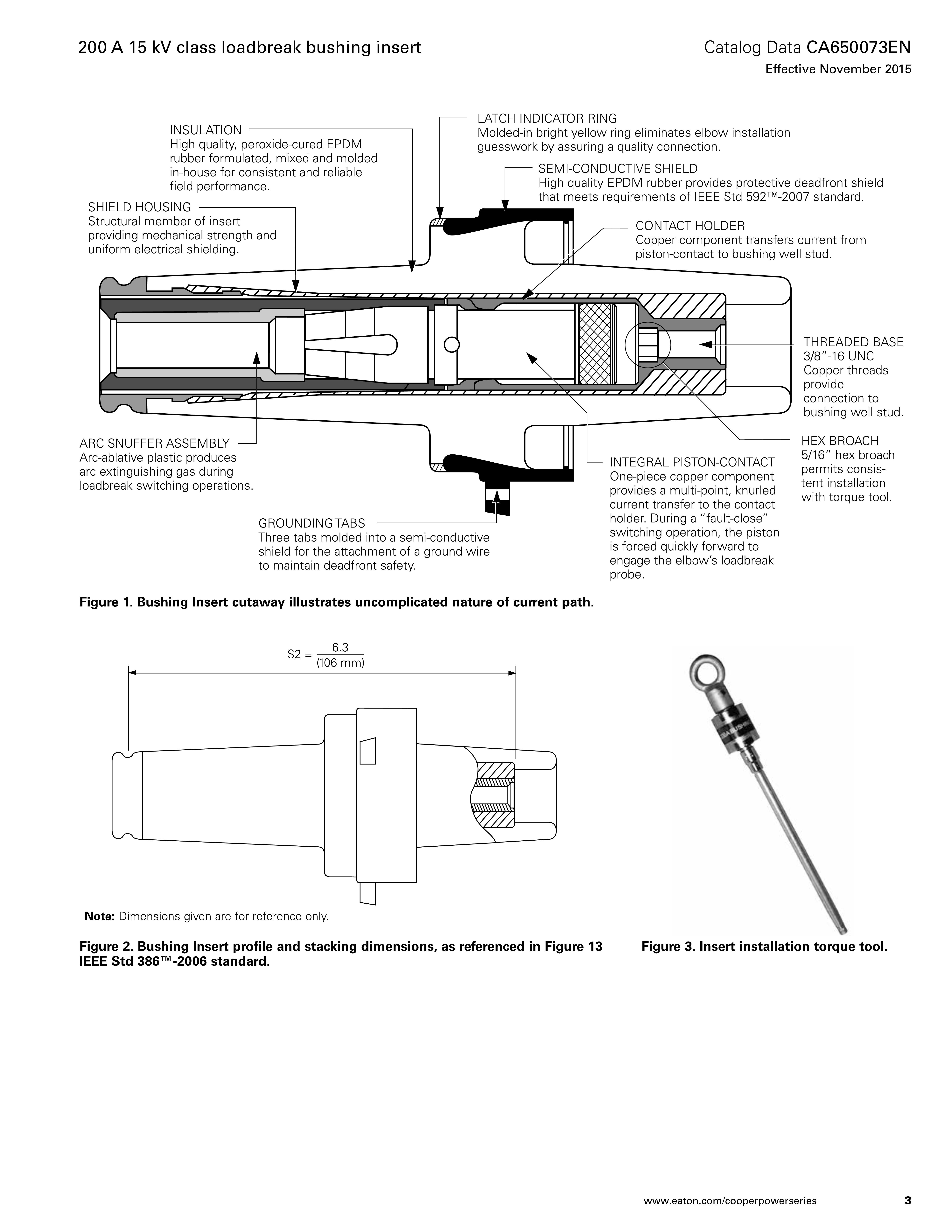

No special tools are necessary. The insert can be installed by hand or with the assistance of a torque tool. Using the hex-broached base (see Figure 1) and the optional installation torque tool, consistent installation can be easily achieved. Refer to Service Information MN650013EN 200 A, 15 and 25 kV Class Loadbreak Bushing Insert Installation Instructions for details.
