插入式高容量熔丝15kV High Amp Overload Fuse Link

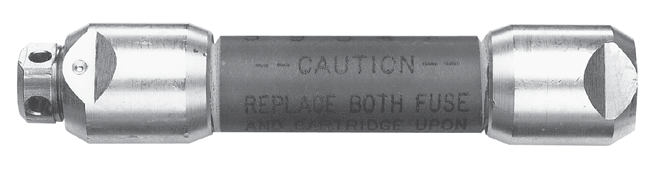

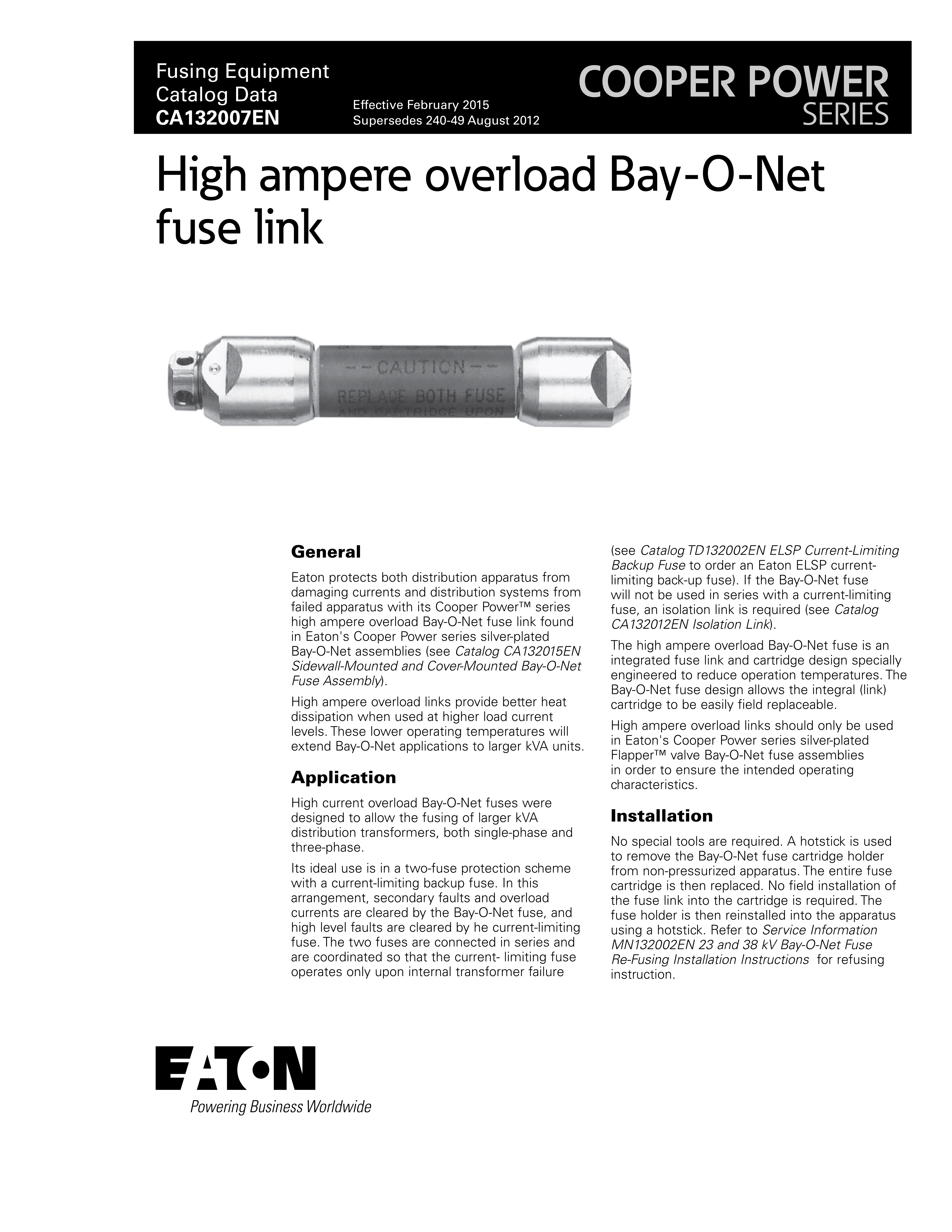

Eaton（Cooper）插入式高容量熔丝15kV High Amp Overload Bay-O-Net Fuse Link（4038361 Series）

Eaton protects both distribution apparatus from damaging currents and distribution systems from failed apparatus with its Cooper Power™ series high ampere overload Bay-O-Net fuse link found in Eaton's Cooper Power series silver-plated Bay-O-Net assemblies (see Catalog CA132015EN Sidewall-Mounted and Cover-Mounted Bay-O-Net Fuse Assembly).

High ampere overload links provide better heat dissipation when used at higher load current levels. These lower operating temperatures will extend Bay-O-Net applications to larger kVA units.

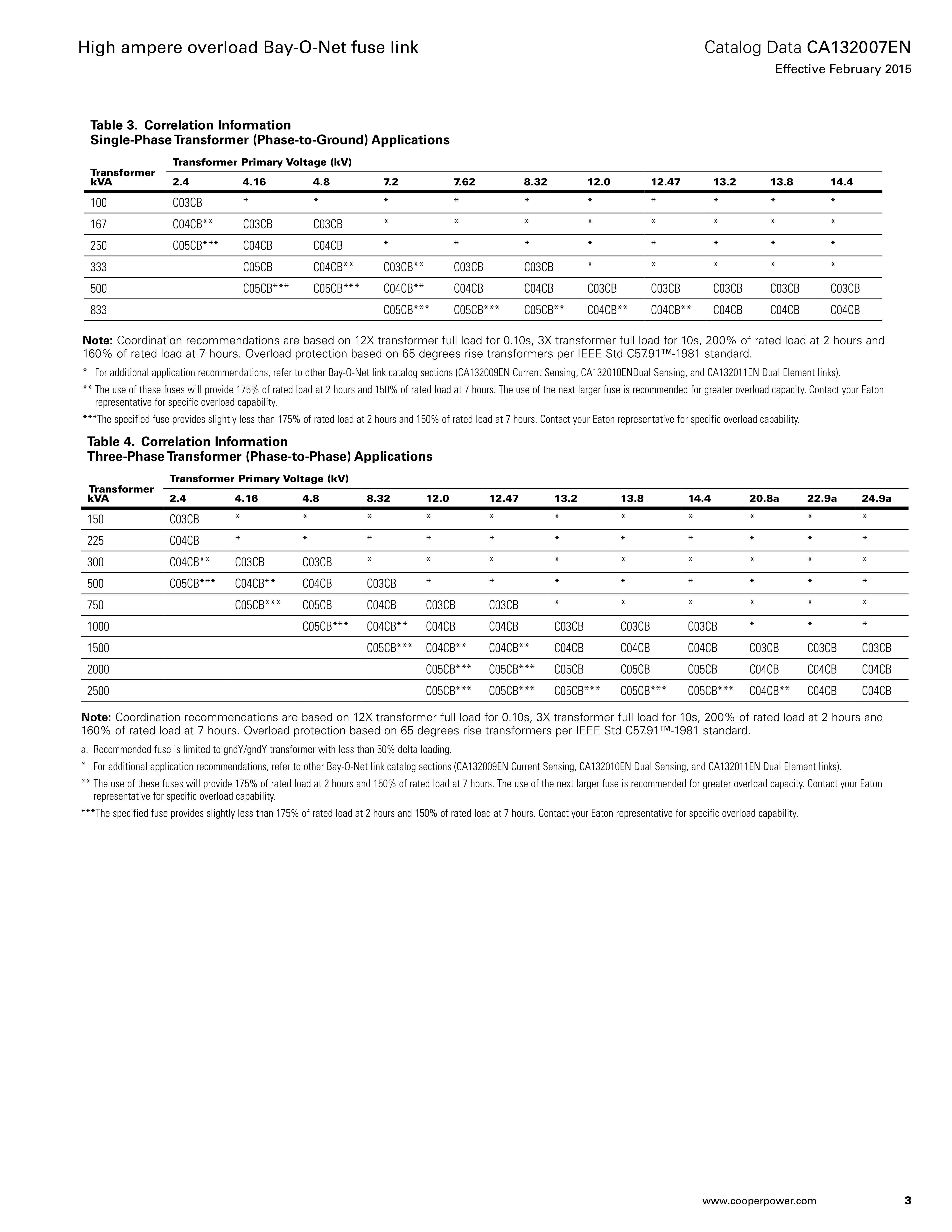

High current overload Bay-O-Net fuses were designed to allow the fusing of larger kVA distribution transformers, both single-phase and three-phase.

Its ideal use is in a two-fuse protection scheme with a current-limiting backup fuse. In this arrangement, secondary faults and overload currents are cleared by the Bay-O-Net fuse, and high level faults are cleared by he current-limiting fuse. The two fuses are connected in series and are coordinated so that the current- limiting fuse operates only upon internal transformer failure (see Catalog TD132002EN ELSP Current-Limiting Backup Fuse to order an Eaton ELSP currentlimiting back-up fuse). If the Bay-O-Net fuse will not be used in series with a current-limiting fuse, an isolation link is required (see Catalog CA132012EN Isolation Link).

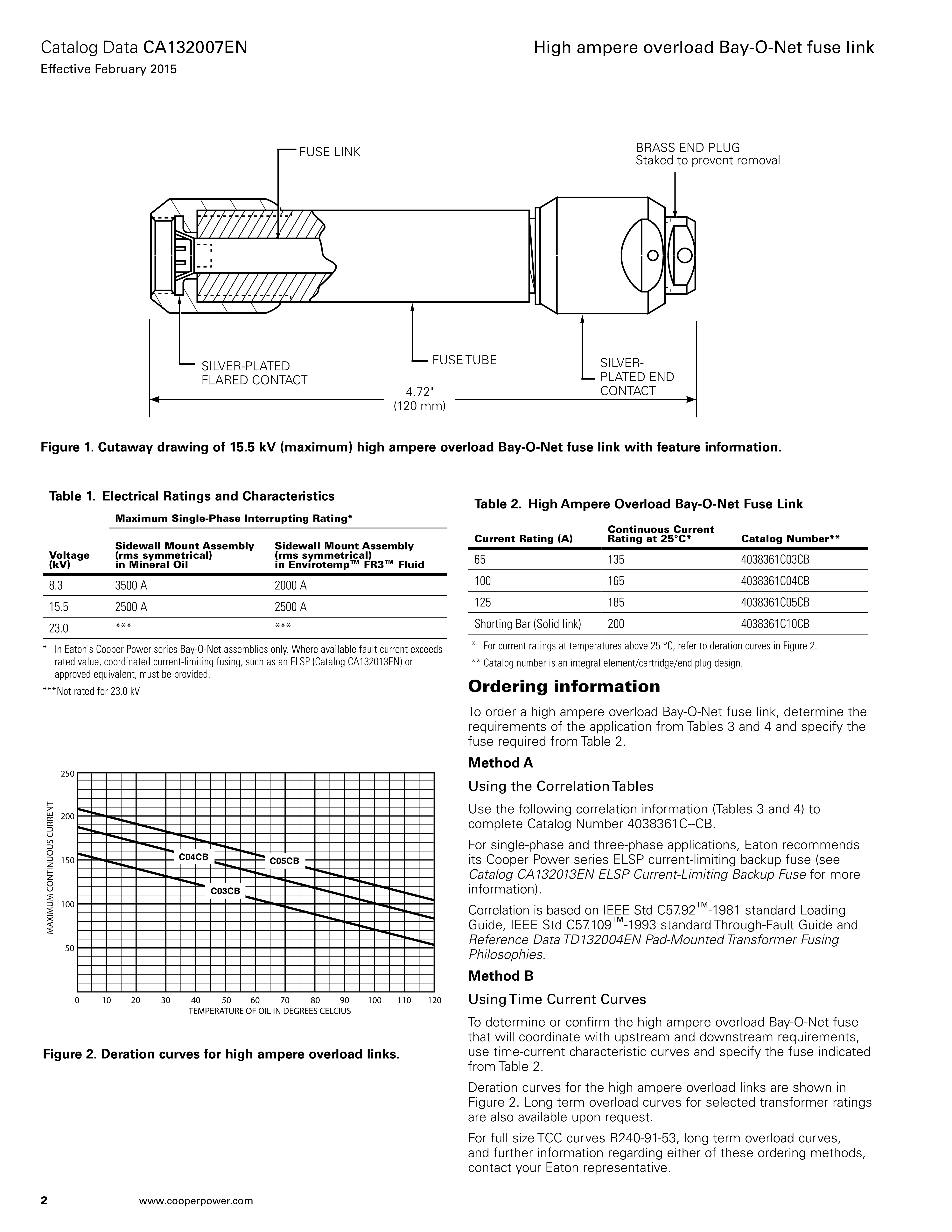

The high ampere overload Bay-O-Net fuse is an integrated fuse link and cartridge design specially engineered to reduce operation temperatures. The Bay-O-Net fuse design allows the integral (link) cartridge to be easily field replaceable.

High ampere overload links should only be used in Eaton's Cooper Power series silver-plated Flapper™ valve Bay-O-Net fuse assemblies in order to ensure the intended operating characteristics.
