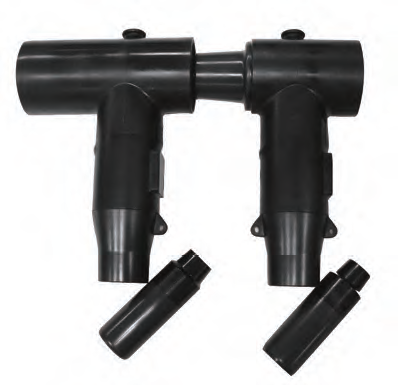

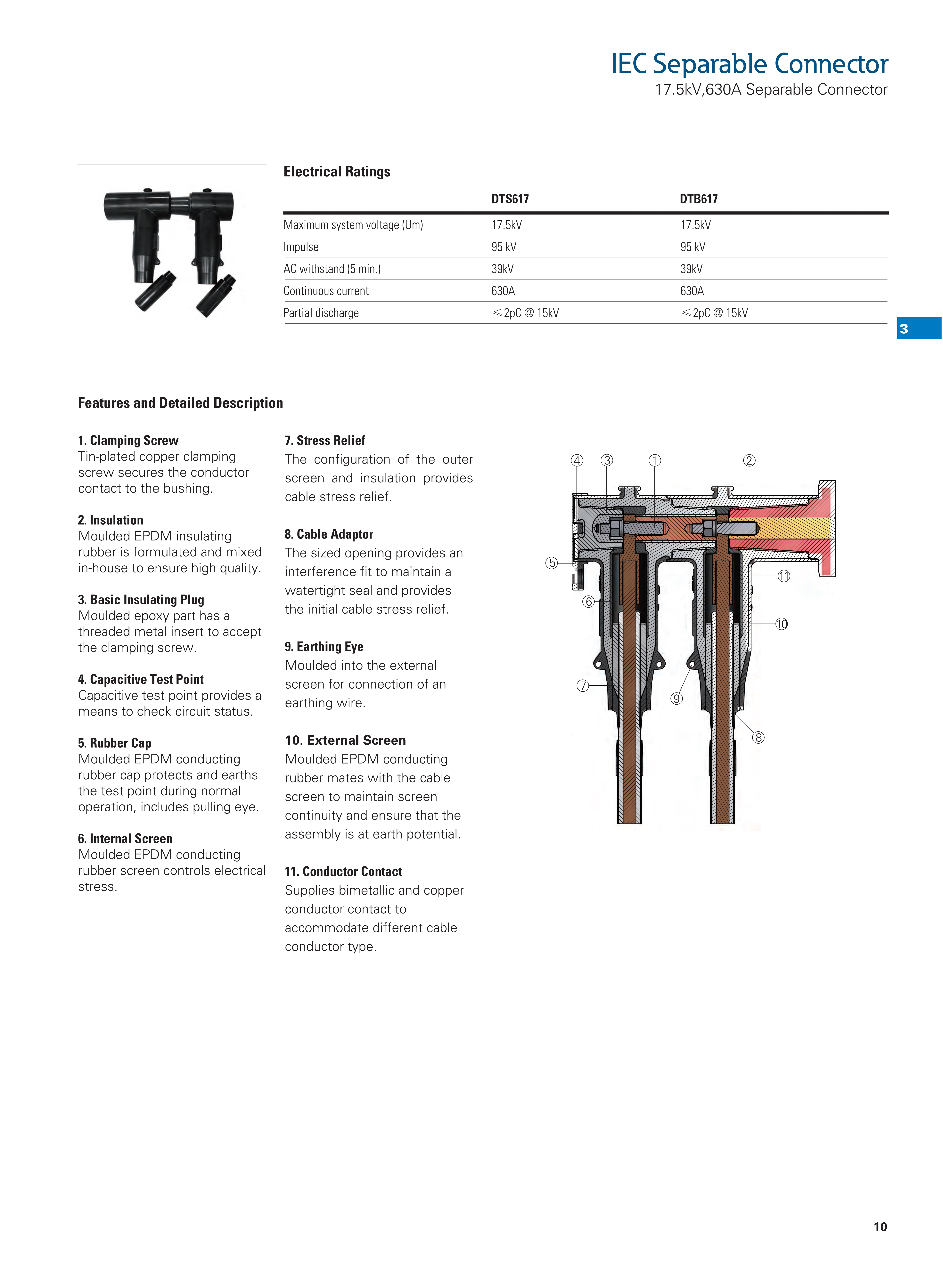

欧式插拔头 630A 17kV Separable Connector

Eaton（Cooper） 欧式电缆插拔头 630A 17.5kV Type C Interface Separable Connector

For connection of extruded polymeric cable to transformers, switchgear, sectionalizing cabinets with a premoulded 630A separable connector.

For indoor and outdoor installations.

System voltage up to 17.5kV.

Continuous current 630A (900A overload current for 8 hours).

Cable particulars:

Extruded polymeric cable (XLPE, EPR, etc).

Copper or aluminum conductors.

Conductor size: 8.7/15(17.5) kV cable 35 - 400mm².

Provides a fully screened and fully submersible separable connection when mated with the proper bushing or plug meet the requirements of EN50180/EN50181-DIN47636/HN52-S-61.

Built-in capacitive test point allows for an easy check of circuit status or installation of a fault indicator.

No minimum phase clearance requirements.

Mounting can be vertical, horizontal, or any angle in between.

Meets the requirements of GB/T 12706.4-2016, IEC 60502-4:2010, VDE 0278, EDF, HN 52-S-61, BS 2715.
