母排（铜） 200A 35kV Class Loadbreak Junction

Eaton（Cooper） 母排（铜） 200A 35kV Class Loadbreak Junction

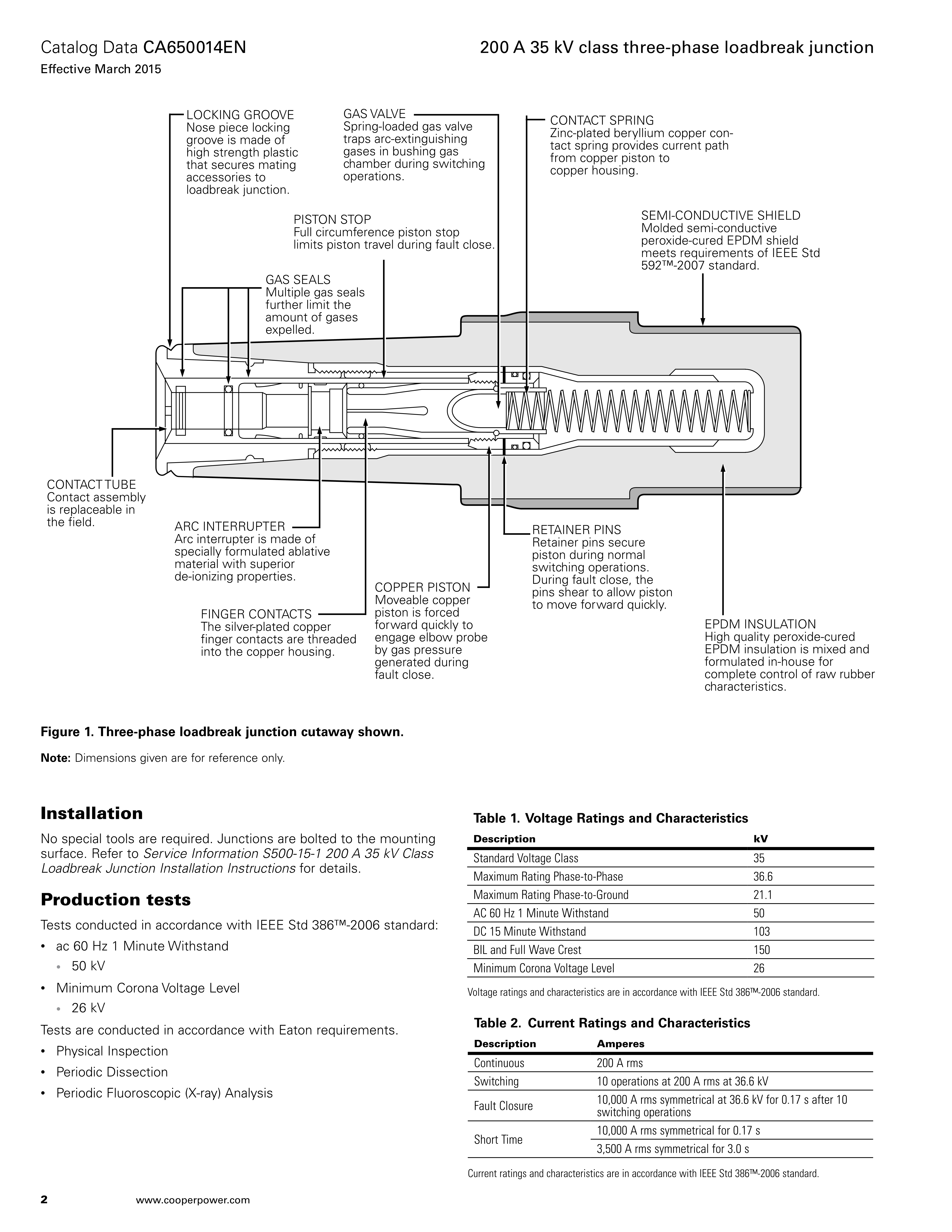

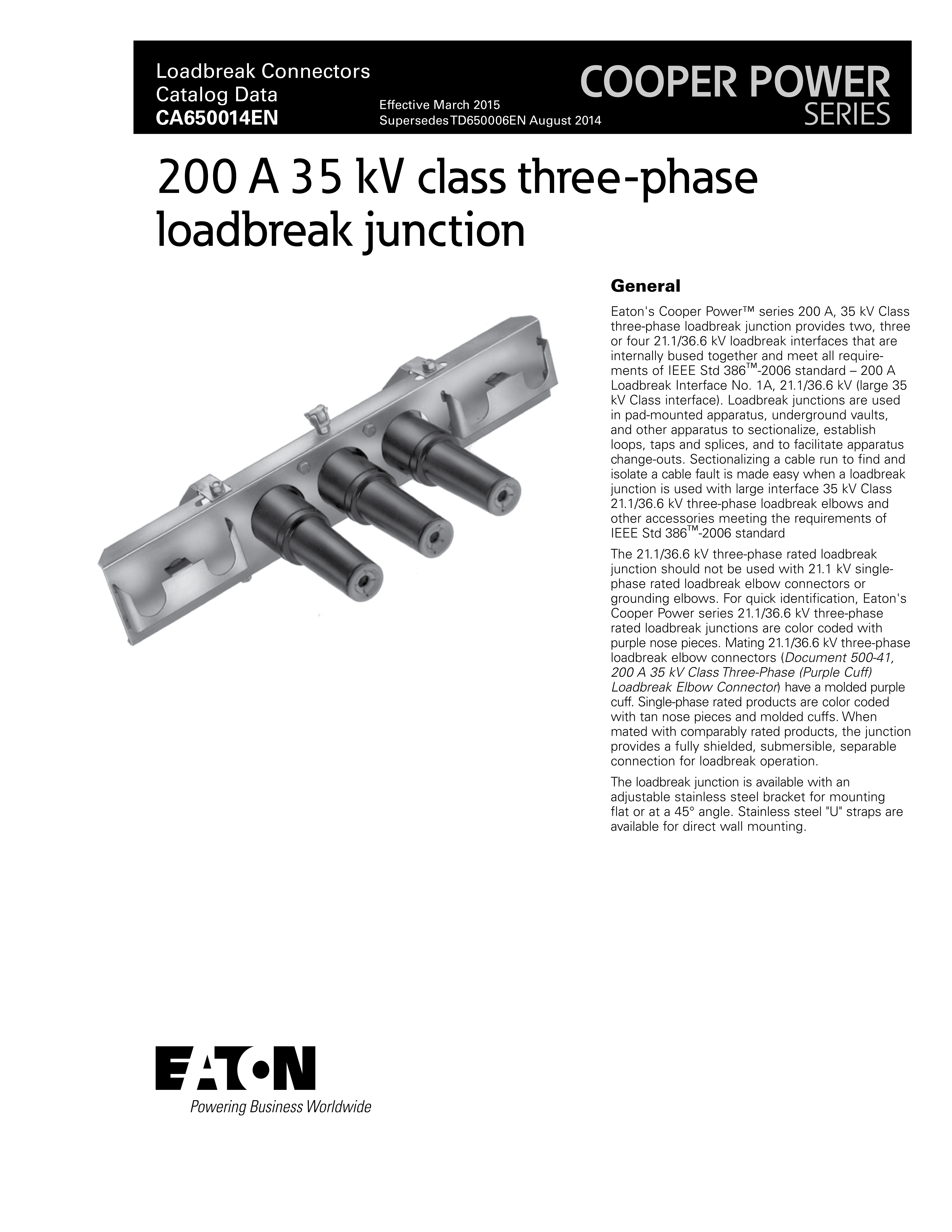

Eaton's Cooper Power™ series 200 A, 35 kV Class three-phase loadbreak junction provides two, three or four 21.1/36.6 kV loadbreak interfaces that are internally bused together and meet all requirements of IEEE Std 386™-2006 standard – 200 A Loadbreak Interface No. 1A, 21.1/36.6 kV (large 35 kV Class interface). Loadbreak junctions are used in pad-mounted apparatus, underground vaults, and other apparatus to sectionalize, establish loops, taps and splices, and to facilitate apparatus change-outs. Sectionalizing a cable run to find and isolate a cable fault is made easy when a loadbreak junction is used with large interface 35 kV Class 21.1/36.6 kV three-phase loadbreak elbows and other accessories meeting the requirements of IEEE Std 386™-2006 standard.

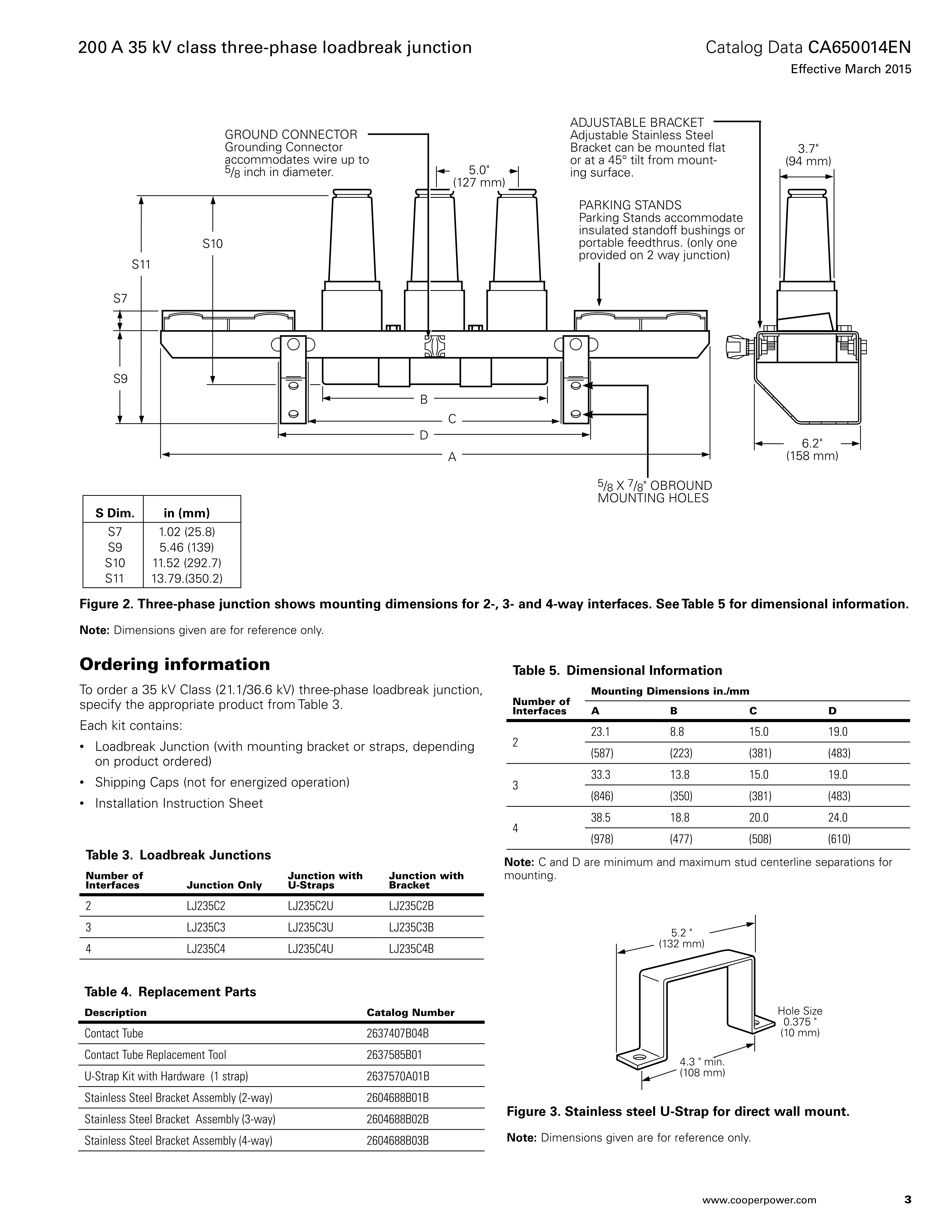

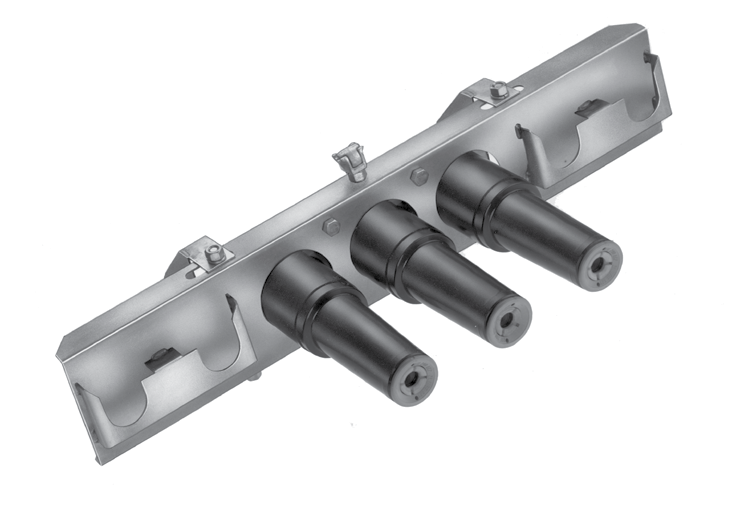

The 21.1/36.6 kV three-phase rated loadbreak junction should not be used with 21.1 kV singlephase rated loadbreak elbow connectors or grounding elbows. For quick identification, Eaton's Cooper Power series 21.1/36.6 kV three-phase rated loadbreak junctions are color coded with purple nose pieces. Mating 21.1/36.6 kV three-phase loadbreak elbow connectors (Document 50041, 200 A 35 kV Class Three-Phase (Purple Cuff) Loadbreak Elbow Connector) have a molded purple cuff. Single-phase rated products are color coded with tan nose pieces and molded cuffs. When mated with comparably rated products, the junction provides a fully shielded, submersible, separable connection for loadbreak operation. The loadbreak junction is available with an adjustable stainless steel bracket for mounting flat or at a 45° angle. Stainless steel "U" straps are available for direct wall mounting.
