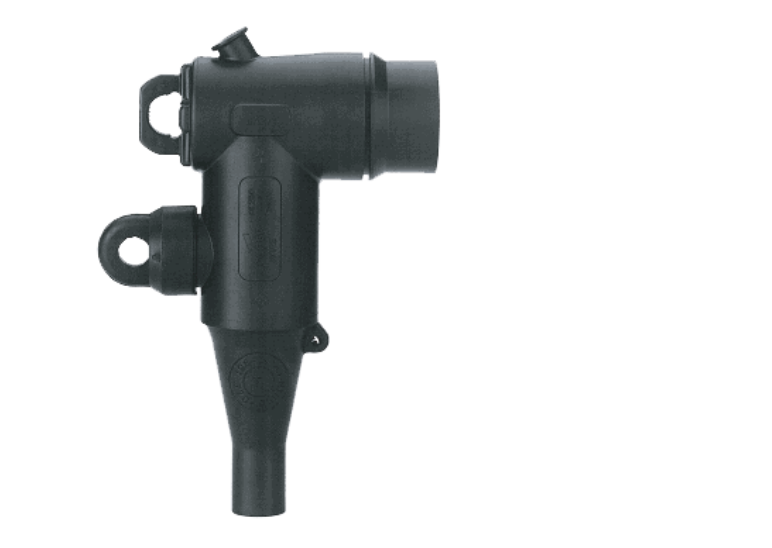

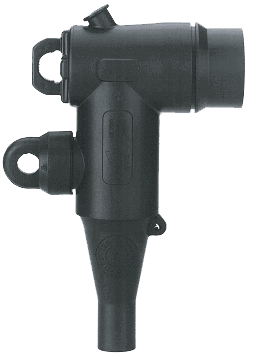

肘型电缆头 250A 24kV Elbow Connector

Eaton（Cooper）A接口肘型电缆头 250A 24kV Type A Interface Elbow Connector (DE224 Series)

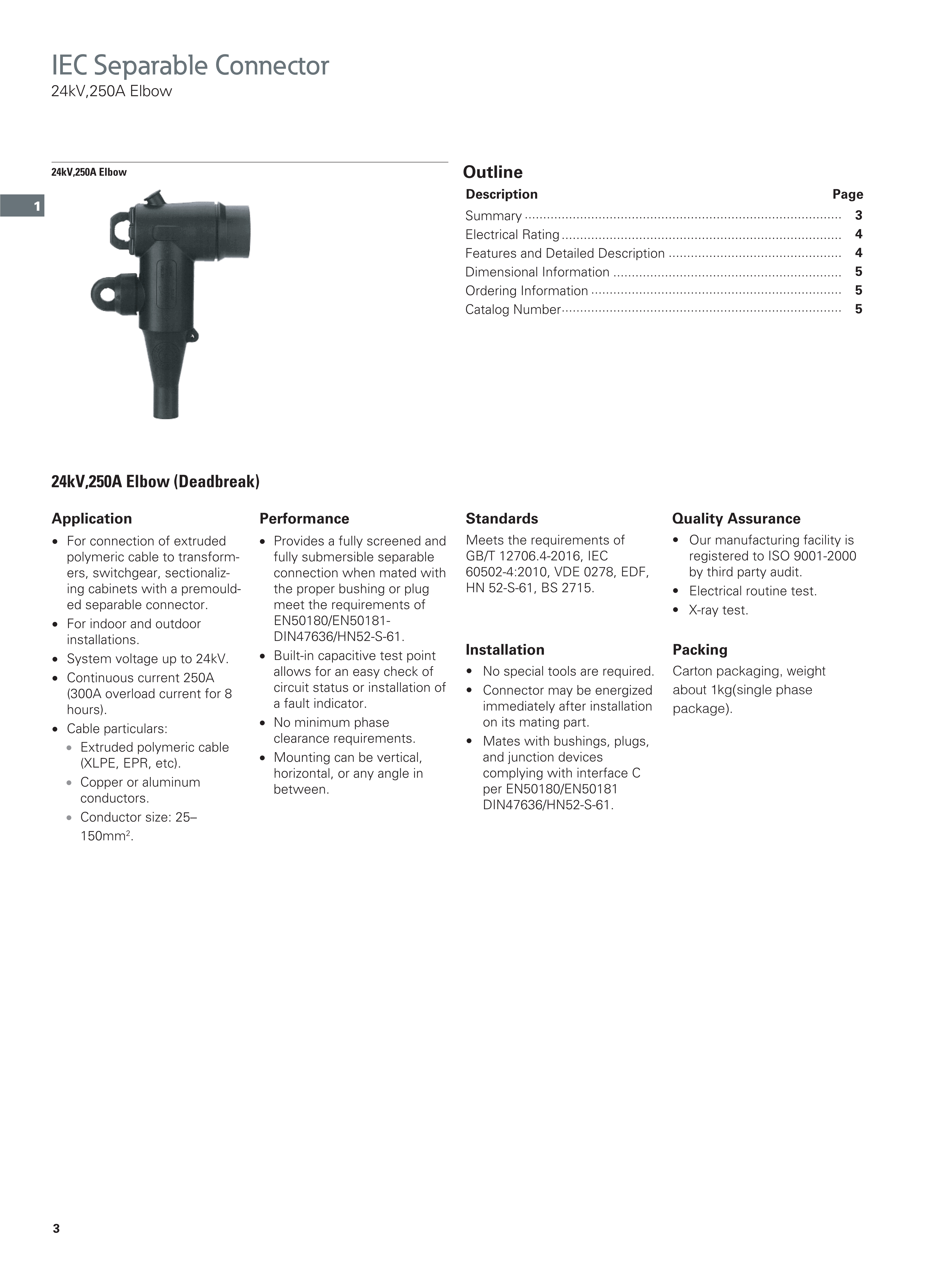

24kV,250A Elbow (Deadbreak)

For connection of extruded polymeric cable to transformers, switchgear, sectionalizing cabinets with a premoulded separable connector.

For indoor and outdoor installations.

System voltage up to 24kV.

Continuous current 250A (300A overload current for 8 hours).

Cable particulars:

Extruded polymeric cable (XLPE, EPR, etc).

Copper or aluminum conductors.

Conductor size: 25– 150mm².

Provides a fully screened and fully submersible separable connection when mated with the proper bushing or plug meet the requirements of EN50180/EN50181-DIN47636/HN52-S-61.

Built-in capacitive test point allows for an easy check of circuit status or installation of a fault indicator.

No minimum phase clearance requirements.

Mounting can be vertical, horizontal, or any angle in between.
