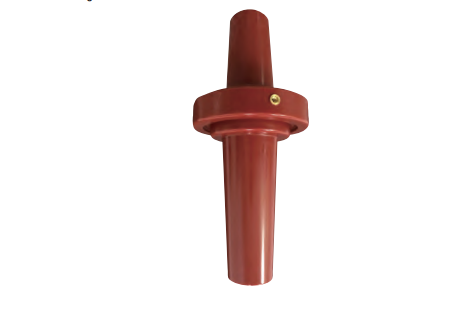

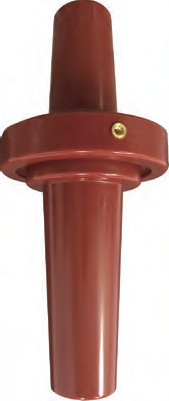

欧式套管 630A 42kV Type C Interface Bushing

Eaton（Cooper） - 欧式套管 630A 42kV Type C Interface Bushing

Used in the oil insulation devices. For example, Switchgear, transformer and capacitor.

System voltage 24kV, 36kV and 40.5kV.

Continuous current 630A.

For indoor and outdoor installations.

Mounting can be vertical or horizontal

Meet the requirements of Type C bushing in EN50180/EN50181 and CENELEC HD506S1.

Verified according to IEC60502-4 and CENELEC HD629.1 51.

AC withstand and PD routine test.

X-Ray test.

Meet the requirements of Type C bushing in EN50180/EN50181 and CENELEC HD506S1.

Verified according to IEC60502-4 and CENELEC HD629.1 51.
