油浸式避雷器隔离器 Under-Oil Arrester Disconnector

产品详情 在线询价

Eaton(Cooper)油浸式避雷器隔离器 Under-Oil Arrester Disconnector (AD150PA200)


Eaton's Cooper Power™ series arrester disconnector provides the transformer manufacturer or utility with a means of disconnecting and reconnecting the under-oil arrester ground for transformer testing. It is designed for mounting (secured from inside shown at left bottom row or outside the tank shown at left top row) in transformers filled with transformer oil, Envirotemp™ FR3™ fluid, or an approved equivalent.


The arrester disconnector was designed to withstand various surge currents as specified in IEEE Std C62.11-1993™ standard as well as highpotential and impulse requirements specified in IEEE Std C57.12.00-1993™ standard.


The elliptically shaped shaft prevents the arrester ground lead from being rotated during operation of the disconnector. The mating corrosion resistant, aluminum seal gland incorporates two Viton® O-Rings for double leak protection.


The shaft and handle are molded of UV stable polymer materials for long term durability. The gasket surface provides a controlled compression and containment of the highly resilient Buna-N rubber gasket.

A threaded (1/4-20 x .56" long) stud is provided for easy arrester ground lead connection.

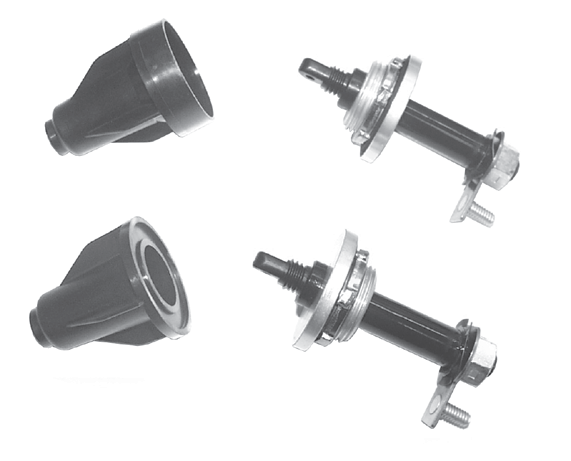

Top row of images show externally secured and the row below show internally secured.
